18 mai 2021

Table of Contents
License Apache%202.0 blue

1. Introduction

Welcome to the Apache OFBiz developer manual. This manual provides information to help with customizing and developing OFBiz. If you are new to OFBiz and interested in learning how to use it, you may want to start with the "Apache OFBiz User Manual".

OFBiz is a large system composed of multiple subsystems. This manual attempts to introduce the overall architecture and high level concepts, followed by a detailed description of each subsystem. In addition, the manual will cover topics necessary for developers including the development environment, APIs, deployment, security, and so on.

1.1. Main systems

OFBiz at its core is a collection of systems:

  • A web server (Apache Tomcat)

  • A web MVC framework for routing and handling requests.

  • An entity engine to define, load and manipulate data.

  • A service engine to define and control business logic.

  • A widget system to draw and interact with a user interface.

On top of the above mentioned core systems, OFBiz provides:

  • A data model shared across most businesses defining things like orders, invoices, general ledgers, customers and so on.

  • A library of services that operate on the above mentioned data model such as "createBillingAccount" or "updateInvoice" and so on.

  • A collection of applications that provide a user interface to allow users to interact with the system. These applications usually operate on the existing data model and service library. Examples include the "Accounting Manager" and "Order Manager".

  • A collection of optional applications called "plugins" that extend basic functionality and is the main way to add custom logic to OFBiz.

1.2. Components

The basic unit in OFBiz is called "component". A component is at a minimum a folder with a file inside of it called "ofbiz-component.xml"

Every application in OFBiz is a component. For example, the order manager is a component, the accounting manager is also a component, and so on.

By convention, OFBiz components have the following main directory structure:

component-name-here/
├── config/              - Properties and translation labels (i18n)
├── data/                - XML data to load into the database
├── entitydef/           - Defined database entities
├── groovyScripts/       - A collection of scripts written in Groovy
├── minilang/            - A collection of scripts written in minilang (deprecated)
├── ofbiz-component.xml  - The OFBiz main component configuration file
├── servicedef           - Defined services.
├── src/
    ├── docs/            - component documentation source
    └── main/java/       - java source code
    └── test/java/       - java unit-tests
├── testdef              - Defined integration-tests
├── webapp               - One or more Java webapps including the control servlet
└── widget               - Screens, forms, menus and other widgets

It is apparent from the above directory structure that each OFBiz component is in fact a full application as it contains entities, data, services, user interface, routing, tests, and business logic.

Both core OFBiz applications as well as plugins are nothing more than components. The only difference is that core applications reside in the "applications" folder whereas plugins reside in the "plugins" folder; also OFBiz does not ship with plugins by default.

1.3. Example workflow

Many basic concepts were explained so far. An example would help in putting all of these concepts together to understand the bigger picture. Let us take an example where a user opens a web browser and enters a certain URL and hits the enter key. What happens? It turns out answering this question is not quite simple because lots of things occur the moment the user hits "enter".

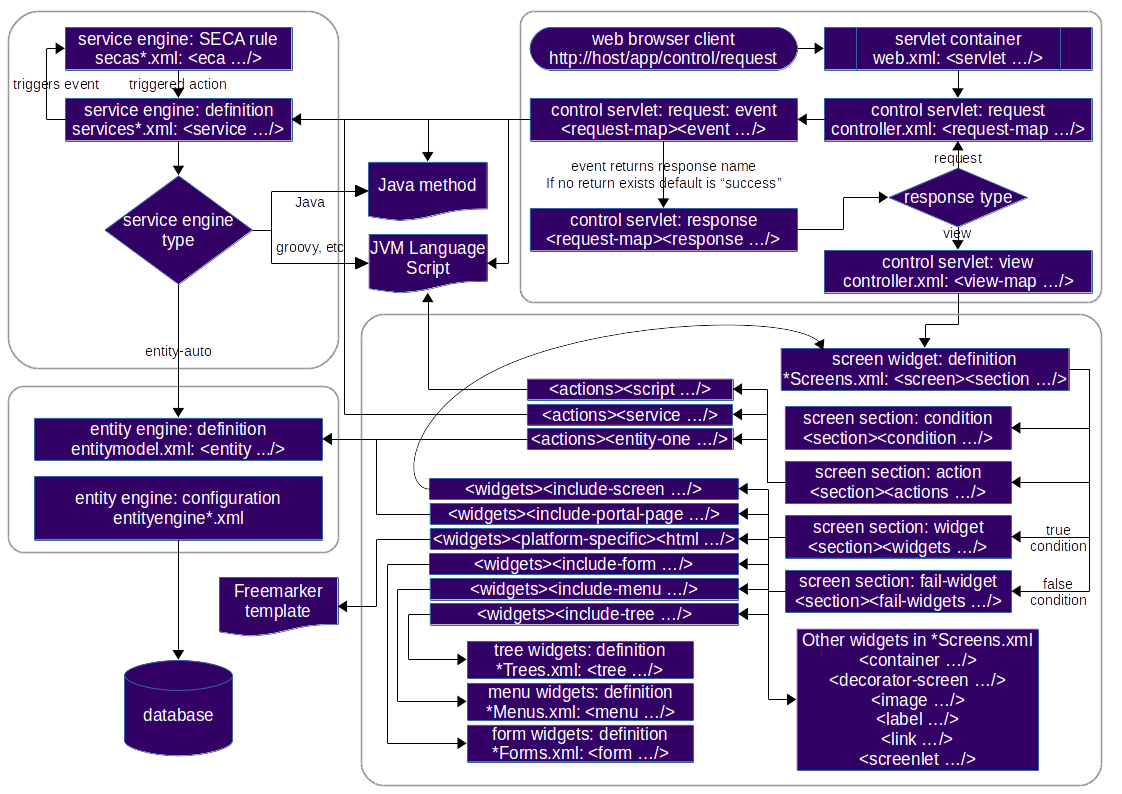

To try to explain what happens, take a look at the below diagram. Do not worry if it is not fully understandable, we will go through most of it in our example.

ofbiz architecture

1.3.1. User enters URL

In the first step in our example, the user enters the following URL:

If we break down this URL, we identify the following parts:

  • localhost: Name of the server in which OFBiz is running

  • 8443: Default https port for OFBiz

  • accounting: web application name. A web application is something which is defined inside a component

  • control: Tells OFBiz to transfer routing to the control servlet

  • findInvoices: request name inside the control servlet

1.3.2. Control servlet takes over

The Java Servlet Container (tomcat) re-routes incoming requests through web.xml to a special OFBiz servlet called the control servlet. The control servlet for each OFBiz component is defined in controller.xml under the webapp folder.

The main configuration for routing happens in controller.xml. The purpose of this file is to map requests to responses.

Request Map

A request in the control servlet might contain the following information:

  • Define communication protocol (http or https) as well as whether authentication is required.

  • Fire up an event which could be either a piece of code (like a script) or a service.

  • Define a response to the request. A response could either be another request or a view map.

So in this example, the findInvoices request is mapped to a findInvoices view.

View Map

A view map maps a view name to a certain view-type and a certain location.

View types can be one of:

  • screen: A screen widget which translates to normal HTML.

  • screenfop: A PDF screen designed with Apache FOP based constructs.

  • screencsv: A comma separated value output report.

  • screenxml: An XML document.

  • simple-content; A special MIME content type (like binary files).

  • ftl: An HTML document generated directly from a FreeMarker template.

  • screenxls: An Excel spreadsheet.

In the findInvoices example, the view-map type is a normal screen which is mapped to the screen: component://accounting/widget/InvoiceScreens.xml#FindInvoices

1.3.3. Widget rendered

Once the screen location is identified and retrieved from the previous step, the OFBiz widget system starts to translate the XML definition of the screen to actual HTML output.

A screen is a collection of many different things and can include:

  • Other screens

  • Decorator screens

  • Conditional logic for hiding / showing parts of the screen

  • data preparation directives in the <action> tag

  • Forms

  • Menus

  • Trees

  • Platform specific code (like FreeMarker for HTML output)

  • Others (portals, images labels etc …​)

Continuing the example, the FindInvoices screen contains many details including two forms. One form is for entering invoice search fields and the other form displays search results.

1.4. The Apache OFBiz documentation system

1.4.1. Overview

there are two supports for OFbiz documentation, the wiki and some mains documents (in pdf and html format)

  • user-manual

  • developer-manual

  • documentation_guidelines

  • README

Asciidoc

The OFBiz documents are generated from a number of Asciidoc files. In general the files are stored on each component in the 'src/docs/asciidoc' directories.
The general main documents include all files from component.

The manuals and guidelines documents are located in docs/asciidoc directories, and REAME.adoc is in root directory.

Help link in the OFBiz user interface, are link to the user-manual generated by buildbot process from Apache OFBiz community. It’s possible to change a property in OFBiz to have link to your own generation.

For details about asciidoc rules used in Apache OFBiz have a look to Documentation Guidelines

Application components

All main files of each component are included in user-manual.adoc

Framework components

All main files of each component are included in developer-manual.adoc except for webtools which is included in user-manual

Plugins

For the main files of the plugin components, there are two ways to read them.

On the one hand, the plugin documentation generation process generates one document per plugin, so that you can see the list of documents in the pluginsdoc directory and thus read each of them;

On the other hand, each plugin master file is included in the plugin chapter of the user manual or developer manual, depending on whether the plugin is "technical" or "functional".

Wiki

Wiki is the second way to contribute to the documentation. Detail on how to Help for providing help content is on the wiki [smile o]

Most of wiki page has been or will be migrated to the asciidoc pages, but, as wiki is more easier to be update (update existing page or create new one) the two system will continue to exist and live.

1.4.2. Contributing a new help screen, a few steps.

Documentation Guidelines is the first doc to read to be able to contribute to documentation and/or help.

If you are looking for asciidoc files format examples, please look at the following files:

  1. An example for a chapter of a component at: applications/humanres/src/docs/asccidoc/_include/hr-intro.adoc

  2. An example of a help screen: applications/humanres/src/docs/asccidoc/_include/HELP-hr-main.adoc

Screens

If you would like to create a new help for a certain screen, you need to do the following:

  1. Write documentation in a functional point of view and in a process perspective.

  2. Each title (in all level) generate in html an anchor, so starting point of the help should be a title.

  3. Take the anchor generated (something like _the_title , with only lowercase), for example by looking in the html file generated.

  4. In the screen add a <set field for helpAnchor with anchor generated as value.

1.4.3. Internationalization of the help system

Currently documentation is only in English (except for 3 or 4 files, not included).

In near future, there will be a solution to be able to have documentation/help in multiple languages, a jira (OFBIZ-12030) is open of that.

The switching between locale will be completely automatic (depending on OFBiz user local)

2. Web Framework

3. Web Applications

The OFBiz webapp is one of the core framework components. It is tightly integrated with other framework components.

3.1. Cross-domains Single Sign On (SSO)

In some cases you need to split the OFBiz applications on different servers, and possibly in production on different domains. This can happen for different reasons, most often for performance reason.

As it’s annoying to give each time a credential when changing from an OFBiz application to another on the same server, the same applies when changing from an OFBiz application to another on another domain.

To prevent that on the same server, the ExternalLoginKey mechanism is used. The cross-domains SSO feature allows to navigate from a domain to another with automated SSO.

It based on 3 technologies:

JWT

JWT Official site - Wikipedia for JWT

CORS

CORS (Mozilla doc) - Wikipedia for CORS

Ajax

Ajax, now well known I guess, in OFBiz we use jQuery for that.

The mechanism is simple.

On the source side:
  1. When an user log in in an application (webApp) a webappName.securedLoginId cookie is created. This cookie will be used by the mechanism to know the current logged in user. Note that all webappName.securedLoginId cookies are deleted when the user session is closed or time out. Hence (apart also using an intrinsically secured cookie) the mechanim is secured, even on shared machines. Of course if people are sharing a machine during their sessions, things could get complicated. This unlikely later case is not taken in account.

  2. The user is given a JavaScript link which passes the URL to reach and the calling webapp name to the sendJWT() Ajax function.

  3. The sendJWT() Ajax function calls the loadJWT() Ajax function which in turn calls the CommonEvents::loadJWT method through the common controller.

  4. The CommonEvents::loadJWT method uses the calling webapp name to retrieve the userLoginId from the secured webappName.securedLoginId cookie, creates a JWT containing the userLoginId, and returns it to the loadJWT() Ajax function.

  5. Then the sendJWT() Ajax function sends an Authorization header containing the JWT to the URL to reach. At this stage, if all things are correct, the flow leaves the source side.

On the server side:
  1. A CORS policy is needed. Without it, the Authorization token containing the JWT will be rejected. It’s a simple policy but you need to strictly define the authorized domains. Never use the lazy "*" for domains (ie all domains), else the preflight request will not work. Here is an example for Apache HTTPD (domain value is "https://localhost:8443" for official OFBiz demo):

Header set Access-Control-Allow-Origin domain
Header set Access-Control-Allow-Headers "Authorization"
Header set Access-Control-Allow-Credentials "true"
  1. The checkJWTLogin preprocessor, similar to the checkExternalLoginKey, intercepts the JWT, checks it and if all is OK signs the user on. That’s it !

In the example component, the FormWidgetExamples screen contains 2 new fields in the LinksExampleForm which demonstrate the use from a local instance to the trunk demo instance.

If you are interested in more details you may refer to https://issues.apache.org/jira/browse/OFBIZ-10307

3.2. Control Servlet

3.2.1. Requests

3.2.2. Views

4. The Entity Engine.

4.1. Entity Engine guide.

4.2. Entity Engine Configuration Guide.

4.3. Entity overview.

4.4. Entities

4.4.1. Standard Entities

4.4.2. View Entities

4.4.3. Extended Entities

4.4.4. Dynamic View Entities

4.5. XML Data

4.6. The OFBiz Datafiles

4.6.1. Intoduction

There is a data import tool in OFBiz called the DataFile tool.
It uses XML files that describe flat file formats (including character delimited, fixed width, etc) and parses the flat files based on those definitions. So, by design it is somewhat like the Entity Engine.

It uses a generic object to represent a row in the flat file.
It includes features like a line type code for each line and can support hierarchical flat files (ie where parent/child relationships are implied by sub-records).

The code is in the ofbiz/framework/datafile directory, and there is an XSD there to describe how the data file definition XML file should look.

The DataFile has a web page in WebTools to parse data files and generate entity xml files (that can be imported in OFBiz) from them, and to do in/outtesting.

both the import of fixed width flat files and character delimited files are implemented.

4.6.2. Definitions

  • File : this is an xml file that contains one or more "Data File Definition"s;

    • the grammar of the file is defined in framework/datafile/dtd/datafile.xsd

  • Data file Definition : the definition of a data file structure (e.g. names/types of the fields/columns in a "Data File";

    • the same "Data File" could have more than one "Data File Definition"s (e.g. the definitions could consider different subsets of all the fields available in the data file).

  • Data file : the text file that contains all the data (a fixed width or a character delimited text file)

4.6.3. How to use the "Work With Data Files" screen in the Webtools application

Prerequisites: a definition file (containing the fields' definition of the data file) and a data file (containing the data you want to parse/import) should be available in the OFBiz server.Steps:

  1. connect to the Webtools application

  2. go to the "Work With Data Files" screen

  3. enter the path to the your definition file in the "Definition Filename or URL" input field

  4. click on the submit button>

  5. the "Data File Definition Name" input field will be changed into a drop down box containing all the definitions available in the definition file

  6. select the definition you want to use from the drop down box>

  7. enter the path to the your data file in the "Data Filename or URL" input field

  8. if you want to generate an entity xml file that can be later imported in OFBiz, enter a path for it in the "Save to entity xml file:

  9. input field and click on the submit button; the file will be created
    (see the paragraph "Tips to create Entity Xml Files" for more details)

<field name="productId" type="String">
            </field>

4.6.4. Examples

Sample fixed width CSV file posreport.csv to be imported:
An example of fixed width flat file import.
021196033702    ,5031BB GLITTER GLUE PENS BRIGH  ,1           ,5031BB      ,       1,     299,
021196043121    ,BB4312 WONDERFOAM ASSORTED      ,1           ,BB4312      ,       1,     280,
021196055025    ,9905BB  PLUMAGE MULTICOLOURED   ,1           ,9905BB      ,       4,     396,
Sample xml definition file for importing select columns
Sample xml definition file for importing select columns posschema.xml:
    <data-files xsi:noNamespaceSchemaLocation="http://ofbiz.apache.org/dtds/datafiles.xsd" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
        <data-file name="posreport" separator-style="fixed-length" type-code="text">
            <record name="tillentry" limit="many">
                <field name="tillCode" type="String" length="16" position="0"></field>
                <field name="name" type="String" length="32" position="17"></field>
                <field name="prodCode" type="String" length="12" position="63"></field>
                <field name="quantity" type="String" length="8" position="76"></field>
                <field name="totalPrice" type="String" length="8" position="85"></field>
            </record>
        </data-file>
    </data-files>
Another example reading fixed record little endian binary files
    <data-files xsi:noNamespaceSchemaLocation="http://ofbiz.apache.org/dtds/datafiles.xsd" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
        <data-file name="stockdata" separator-style="fixed-record" type-code="text" record-length="768">
            <record name="stockdataitem" limit="many">
                <field name="barcode" type="NullTerminatedString" length="12" position="0"></field>
                <field name="prodCode" type="NullTerminatedString" length="12" position="68"></field>
                <field name="price" type="LEInteger" length="4" position="80"></field>
                <field name="name" type="NullTerminatedString" length="30" position="16"></field>
            </record>
        </data-file>
    </data-files>
Procedure:

In the interface enter something like:

  1. Definition Filename or URL: posschema.xml

  2. Data File Definition Name: posreport

  3. Data Filename or URL: posreport.csv

4.7. Entity engine configuration

4.8. Supported databases

Unresolved directive in <stdin> - include::../../applications/datamodel/DATAMODEL_CHANGES.adoc[leveloffset=+2]

5. Service Engine

A description of the service engine can be found at the OFBiz wiki Service Engine Guide

5.1. Declaration and Implementation

5.2. Supported languages

5.3. Transaction management

5.4. Web services

6. Widget System

6.1. Screen Widget

6.1.1. Decoration Pattern

6.2. Form Widget

6.3. Menu Widget

6.4. Tree Widget

6.5. Portal Widget

6.6. Platform Specific Code

Unresolved directive in <stdin> - include::../../themes/docs/themes.adoc[leveloffset=+2]

6.7. SPA / FrontJs with Vue.Js

SinglePageApplication or GUI done with a front done with a Javascript framework

done with Vue.Js framework, and Vuetify Material-Design library

vuejs component included a FrontJs-Renderer (similar as Macro-Renderer) usable to handle user interface with modern javascript framework (Vue.Js, React, Angular, ect…​) to be able to build a Single Page Application for one or more OFBiz component.

It use the standard OFBiz Widget System defined by XML and a vuejs application.

This component is currently at Work In Progress state, it aims to concretely build applications/components in order to discuss the development process and the use of the application.
It is produced in an "Agility" spirit which mean that it focus to result in despite of some technical debt. Currently there are still some TODO in the code and choice has been made to implement only xml tags and attributes which are used, at least, in one application/component.

XML tag or attribute not yet implemented generate warning or error.

This documentation aim to,

  • Explain the current state of the component, how it work and which points had been choose or took away.

  • Document how to use it to develop OFBiz application by explaining each specific item by example.

The two main goal of using a javascript framework for user interface is

  1. to have a "modern" look and feel

    • using recent GUI library

    • usable in multiple context (PC, tablet, smartphone)

  2. to increase interactive elements in screen, even if theses screens are based on standard modules :

    • update some part of the screen by action or by data update;

    • modify forms field as function of other field values;

    • simpler screen configuration without having to worry about screenlet interaction.

6.7.1. Vue.Js Renderer

Actually the first javascript application enabling to use portlet system - portal Apache OFBiz is written with the Vue.js framework.

Vue.js has been choose for its easy learning curve and its community driven development instead of a corporation.
In Vue.js, library vuetify has been choosen, because it’s base on material design and have e very active community, so seem to be the most used vue.js GUI libraries.

POC Vuejs Renderer installation
  1. From a standard trunk ofbiz-framework with 205914a1beb commit or superior (that can be downloaded at documentation standard SourceRepository using git).

  2. Create the 'plugins' repository at ofbiz-framework root folder.

  3. In the Apache OFBiz plugins repository, download the next repository using git :

  4. In the ofbizextra plugins repository, download the 3 next repositories using git :

    1. vuejsportal plugin that can be downloaded at https://gitlab.ofbizextra.org/ofbizextra/ofbizplugins/vuejsPortal all vuejs components, a new ScreenViewHandler and 4 new renderers (screen, form, menu, tree) and all common files to all fjs component.

    2. examplefjs plugin that can be downloaded at https://gitlab.ofbizextra.org/ofbizextra/ofbizplugins/examplefjs.git specifics files for using vue.js with ofbiz example component

    3. flatgreyfjs plugin that can be downloaded at https://gitlab.ofbizextra.org/ofbizextra/ofbizplugins/flatgreyfjs.git dedicated theme for vue.js with vuetify library

  5. In the ofbizextra git repository download ofbizJiraPatchAvailable project
    If there are some files, some patch may be necessary for this POC, for each patch you can goto JIRA to have more explanation for each.
    To apply them it is recommended to create a branch on your ofbiz, and apply the patchs with git command git am patchName. Currently these patchs are necessary:

    1. OFBIZ-11645_0001-simple-methods-optional-in-compound-file.patch ⇐ compound-widget files are used in POC

    2. OFBIZ-11676_0001-Fixed-drop-down-field-not-work-when-in-a-compound-wi.patch ⇐ compound-widget files are used in POC

    3. OFBIZ-11708_0001-fixed-sort-order-field-not-works-in-CompoundWidgets.patch ⇐ compound-widget files are used in POC

  6. If there are some files in the ofbizCommit2add, it’s some patch waiting jira creation or dedicated for this POC, so it’s needed to apply them too with git am fileName at the ofbiz root directory (replace fileName by the patch file name and path)

  7. After that you have to modify some files of ofbiz-framework (ex: model.java because some tag are added).
    For that, a (bash) script exist, it’s located in the 'plugins/vuejs' :
    ./tools/applyOfbizFilesPatchs.sh
    And then copy some files
    rsync -a --exclude-from=./ofbizFiles/rsyncExcludes ./ofbizFiles/ ../../

  8. To be able to build the vue.js application you must have Node.js installed on your system.

    1. To install Node.js on a debian based system, execute the following commands :
      curl -sL https://deb.nodesource.com/setup_8.x | sudo -E bash -
      sudo apt-get install -y nodejs
      In case of another system, you can consult https://nodejs.org/en/download/package-manager/#debian-and-ubuntu-based-linux-distributions

    2. Meanwhile an integrated gradle command

      1. Being located at 'plugins/vuejs/webapp/vuejs'

        • npm i ⇐ to install the project dependencies

        • npm run build-prod ⇐ to build the project (it’s possible to use build-dev to be able to use browser dev-tools)

  9. You can now launch OFBiz as regular :
    ./gradlew cleanAll loadAll ofbiz
    (being located at the root of ofbiz-framework )

  10. You can now connect to the application portal at https://localhost:8443/examplefjs/control/main

POC choices

Apache OFBiz trunk branch usage.

Principe and architecture of Apache OFBiz Portal Page and Porlet usage.

The whole use cases are applied to example component and during the POC some new files used which should to be located in common have been moved to examplefjs aiming to simplify the installation and update process.

With examplefjs, there is an additional webapp (examplefjs), it centralize allowed URIs for vuejs component, currently this applicationName is listed in constantes.js file.
vuejs component is not bound to a component, it just need a base URI for send its requests. This uri is temporary set in constantes.js but it will be more flexible later aiming to use vuejs with multiple components

Portal component ( https://localhost:8443/examplefjs/control/login ) use ofbiz standard login by cookies mechanism, it will later use ofbiz login by token (cf. https://issues.apache.org/jira/browse/OFBIZ-9833).

screens, forms, menus used for portlets are defined with xml, and dedicated files for better readability.

There is a component (vuejs) for each ofbiz screen element ( SingleItemRow ⇒ vue.single-item-row ), which are defined by renderer for screen, form and menu ( and for html renderer that correspond globally to macro.ftl ). Actually, for the POC, to list them, you can search in vuejs existing file for Vue*.vue in webapp/vuejs/src/component/ .

XML tags used

During the POC, few new properties or XML tags had been added but some of existing tags and properties had been distorted for an exclusive Vue.Js use.

  • screen

    • in <container tag
      container is the main piece of dynamics screen (update a part of screen on event)

      • id is used to identify the container and enable to inject content into it with set-area later.
        When set-area is done for this id, its content will be replace by the content received from area-target.
        So, do not resend the container !

      • watcher-name (new attribute) is a name in the local store (in web browser) which can contain some data (parameters). It’s possible to update watcher content with a set-watcher. Each time the watcher content changes, the auto-update-target is called using watcher content as parameters to update the container.
        If refresh-area is call, the refresh is done by using auto-update-target and watcher content (if exist).

      • auto-update-target is used to bind a watcher to the container.
        To use it with set-watcher, a new attribute watcher-name has been added, and when the content of this this watcher changes a set-area is done with auto-update-target as target and watcher content as parameters.
        auto-update-target support the REST uri format with some parameters in it include with {}, value is populate with content of watcher content. If uri contain, at least one {xxx} or have no parameters a GET method will be used otherwise a POST will be used.

    • screenlet

      • collapsible, if collapsible = "true" then it’s necessary to have a "unique" id to know what collapse when button is clicked. It’s possible to have multiple screenlet with same id or each with a different one.
        So, it’s important to give a id if collapsible ="true" otherwise collapse will collapse all screenlet without id !

      • id : is manatory if the screenlet should be collapse

    • in platform-specific-html tag a new tag

      • vuejs is to call a specifics vuejs component named component-name.
        it’s possible to give to it some parameters with sub tag parameters

  • form

    • property entity-name is mandatory for grid or single form, vuejs use it to build entity store. When entity-name, exist data print to screen are associated to the web-browser local store, so when a data change in one screenlet, same data in an other screenlet will change too.

    • in <on-event-update-area tag (there can be many of them and they will be executed in xml apparition order. It will wait current task is completed before starting the next one. If any of these events is set, the submit button will prevent the form default behaviour, so if you need to post in addition to vuejs feature you must add an event-type submit)

      • event-type
        Define the action to be executed during the form submitting (click on submit button). It can take one of next values :

        • submit will submit the form to area-target with provided parameter elements. Like set-area if no parameter are defined it will use the whole form. Error and success messages will be displayed.
          Form target support the REST uri format with some parameters in it include with {}, value is populate with content of form - fields when submit.
          The http method used is POST, but you can add a field _method to choose the method received by the ofbiz controler (ex: PUT for an update)

        • set-area update area with id areaId with the post result at URI area-target with included parameter elements.
          If uri contain, at least one {xxx} or have no parameters a GET method will be used otherwise a POST will be used.

        • refresh-area similar with set-area but target used will be the auto-update-target define at the container level and, if a watcher-name is define for this container, it’s content will be used as parameters (for solving {} in target or as parameters if no {} in target.

        • set-watcher update watcher areaId with included parameter. In case no parameter was passed to set-watcher it will use all form fields to update watcher content.

        • refresh-watcher all container which watch a watcher-name are update when watcher content change, with refresh-watcher update is done without change watcher content.

        • collapse do an action on collapse/expand screenlet.
          area-target is the action to do : collapse or expand or toggle;
          area-id is the screenlet name to change.

        • close-modal close the current modal, currently area-id is necessary, when modal is open for a lookup areaId is {formName}_{fieldName}; area-target is not used, so can be left empty.

    • in <on-field-event-update-area tag (there can be many of them and they will be executed in xml apparition order. It will wait current task is completed before starting the next one.)

      • event-type
        Define the action to be executed during the click on the associated hyperlink (<a link or button). It can take one of next values :

        • post will post at URI area-target with the parameter elements included in the tag. If there are no parameters, it will use the whole form. It will display error and success messages.

        • put will post at URI area-target with the http methof PUT if target contain {xxxx} xxxx will be replace by value if xxxx is define in parameters included in the tag. If there are no parameters, it will use the whole form. It will display error and success messages.

        • delete will post at URI area-target with the http methof DELETE if target contain {xxxx} xxxx will be replace by value if xxxx is define in parameters included in the tag. If there are no parameters, it will use the whole form. It will display error and success messages.

        • set-area update area with id areaId with the post result at URI area-target with included parameter elements.
          If uri contain, at least one {xxx} or have no parameters a GET method will be used otherwise a POST will be used.

        • refresh-area similar with set-area but target used will be the auto-update-target define at the container level and, if a watcher-name is define for this container, it’s content will be used as parameters (for solving {} in target or as parameters if no {} in target.

        • set-watcher update watcher areaId with included parameter. In case no parameter was passed to set-watcher it will use all form fields to update watcher content.

        • refresh-watcher all container which watch a watcher-name are update when watcher content change, with refresh-watcher update is done without change watcher content.

        • set-field-in-form will set the value of property area-target from form area-id from the actual field value.

        • collapse do an action on collapse/expand screenlet.
          area-target is the action to do : collapse or expand or toggle;
          area-id is the screenlet name to change.

        • close-modal close the current modal, area-id is to know which modal close, when modal is open for a lookup areaId is {formName}_{fieldName};
          if area-id is empty all modal are closed;
          area-target is not used, so can be left empty.

    • in parameters tag

      • auto-parameters-portlet allow to automatically fill necessary portlet parameters :

        • portalPageId

        • portalPortletId

        • portletSeqId

        • currentAreaId

    • in <hyperlink tag

      • link-type="anchor" is used to make an internal call to FrontJs via set-area, target-window is used as id to update and target as area-target, parameters as parameters.

      • target-window is used to design the watcherName that have to be updated.

      • url-mode three new modes is added to be able to give the http method to use, POST is the default

        • intra-post : do a http POST request for the set-area, and so sending multiple parameters

        • intra-put : do the http request with a PUT method

        • intra-delete : do the http request with a DELETE method

  • menu

    • in <link tag

      • link-type="set-area" is used to make an internal call to FrontJs via set-area, target-window is used as id to update and target as area-target, it’s a http get so parameters should be in target and if there area some {xxx} in target they will be replace by correct value with fields list in parameters.

      • link-type="auto" (default value) and url-mode="intra-app" call the target-url to print a new page (using internal routing).

      • link-type="layered-modal" is used to open a modal windows and do a set-area in it

      • url-mode three new modes is added to be able to give the http method to use, POST is the default (except for set-area)

        • intra-post : do a http POST request for the set-area, and so sending multiple parameters

        • intra-put : do the http request with a PUT method

        • intra-delete : do the http request with a DELETE method

decorator, lookup

Currently vuejs app is call in a ftl included in the classic mainDecorator, without application menu (which are directly manage by vuejsApp cf Specifics URI).

Currently a specifics theme has created, to be able to remove most of css to avoid "conflict" with vuetify lib. This theme is forced in the main decorator of the application.

Lookup

  1. LookupDecorator is a specifics one for VueJs, but its usage is same as the standard one. It contain 2 main specificity

    • for autocomplete return, all data are in viewData

    • for search - result, when lookup receive parameters.lookupResult = "Y" only result form is sent to be injected in area lookup-results

  2. LookupForm - find :

    • it’s necessary to add a hidden field

         <field name="lookupResult"><hidden value="Y"/></field>
    • it’s necessary to add 2 on-event-update-are,
      first one to send result in the area lookup-result second one to collapse Find screenlet (if you want collapse it

             <on-event-update-area event-type="set-area" area-id="lookup-results" area-target="LookupExample"/>
             <on-event-update-area event-type="collapse" area-id="LookupFindScreenlet" area-target="collapse"/>
  3. LookupForm - list :

    • for the link return field, 2 on-field-event-update-area must be added
      first one to set Field which call the lookup with the correct value
      second one to close the modal

                  <on-field-event-update-area event-type="set-field-in-form" area-id="SelectExample" area-target="exampleId" />
                  <on-field-event-update-area event-type="close-modal" area-id="SelectExample_exampleId" area-target="" />
  4. FindScreenDecorator, is a specifics one for VueJs, but its usage is same as the standard one. Its specificity is about ListResult update. Some modifications should be done in the find form

    • add a hidden field onlyList

                  <field name="onlyList"><hidden value="Y"/><!-- used by FindScreenDecorator to only send list result --></field>
    • add a on-event-update-area to update List result area

               <on-event-update-area area-target="findExample" event-type="set-area" area-id="search-results"/><!-- When parameters-map is empty all form field are sent  -->
    • add a on-event-update-area to collapse find screenlet (optional)

             <on-event-update-area event-type="collapse" area-id="findScreenlet" area-target="collapse"/>
FrontJs Renderer

A new viewHandler and a new set of renderer had been created.
A new package had been created in org.apache.ofbiz.widget.renderer named frontJs which contain all new renderer.

In this package, there is a new FrontJsOutput class which allow to construct necessary elements whit the wished format. An object of this class is instantiate at the begin of viewHandler process, then is completed by rendered object call.

Uri showPortletFj of component examplefjs use the new viewHandler to return screen render result, showPortlet.

This URI is used by Vue.Js application for display information gathering.
New viewHandle return a json which contain 2 maps ( viewScreen and viewEntities ).
viewScreen contain all information about display. viewEntities contain all information about data set.

In future revision, it will probably be feasible to only receive the data map.

Specifics URI

there is a showPortal URI in vuejs (CommonScreen), which is the Start point of the VueJs application.

showPortlet screen is redefine in this POC for simplification purpose, to only do what we want.

applicationMenu is a new uri which return with the FrontJsScreenViewHandler the data (ViewScreen & ViewData) from application xml menu.
In each fjs component, it’s necessary to define a view-map entry applicationMenu pointing to a screen.xml with only the correct menu.

REST URI

For OFBiz applications URI structure is : {resourceName}/{cover}/{Pkvalue: .*}

So, for Example resource, it translate into :

URI

method

Goal

Example/find

get

find form to select options for list

Example/list

get (via post)

Example list,
⇒ with a get (so without parameters) all the examples
⇒ with a post (parameters and _method="GET") examples selected by options

Example/create

get

create form

Example/edit/{exampleId}

get

edit form and data for the id sent

Example/show/{exampleId}

get

show form and data for the id sent

Example/summary/{exampleId}

get

summary form and data for the id sent

Example/data/{exampleId}

get

just data for the id sent

Example/change

post

create a example

Example/change/{exampleId}

put (via post)

update example with exampleId

Example/change/{exampleId}

delete

delete example with exampleId

All these actions([cover]) is about screenlet (part of a page), if cover should be for a page, its name is suffix by Pg.

Tip
HTTP request other than POST method cannot have parameters (other than in URI) so to be able to do a GET or a PUT with parameters a workarround is to used a POST with added <field name="_method"><hidden value="GET"> (or "PUT") in the form (or as one of the parameters).
Caution
TOMCAT httpServlet.java not manage PATCH method, so it’s not usable
Added field

A new field had been added to PortalPagePortlet entity : watcherName which is the name of the watcher that fire portlet update.

ftl

ftl file can be mixed with Vue.js app, so it’s necessary to create a dedicated component by ftl migrated. Look at XML tags used on point platform-specific-html - vuejs.

POC current situation

Currently VueJs POC is only able to manage PortalPage, but it will be simple to manage all other screen types.

The Objective here is to make different use cases portal page to work.
At the menu, there are different pages, actually the name of portal pages name are MgmtPageFrontJs and RecapPageFrontJs.
The first page aim to find and edit examples. The second page aim to show all properties of a given example.

For each portlet present in theses pages, a portlet component is created in Vue.js with the portlet name which initialise itself with showPortletFj.

ShowPortletFj give the component all information about components it have to render (viewScreen) and data set it have to work with (viewEntities). Actually ShowPortletFj respond with a JSON.

Imbrication des container
ViewScreen and ViewEntities

Actually FrontJsViewHandler send all information to component who need update. In a client side logic, ViewScreen would be send only the first time while the portlet call information then would only care about ViewEntity which update the data set it work on.

Actually "use-when" are handled by ofbiz in model model management whatever level they belong to (screen, form, field, menu), so we can’t get this information in the renderer. Later, we had to transmit to renderer all screen elements and if there was "use-when" for manage them in the frontend. This way next call could sent "use-when" correct value to properly update the final screen.

POC’s remaining todos

This list contain only points which are already meet in use case process.

Most of time, each new use case (or portlet) give new task (ex: new field type not yet meet, or field properties not yet process)

Minors
  • review and change field-find to include title in the field to remove the "title" coloumn in find form

  • Manage the ConfMod in the showPortalPage, to show (and manage) the portlet parameters page.

  • do a uri to send label for login screen, to be able to have translation in login screen

  • Include header and footer in the VueJs application to have a full page manage by VueJs, and so have a complete Vue.Js look.

  • Include all Common and Commonext part, like systemInfoNote

Majeurs
  • use VuejsRouter to be able to manage all screenType

  • showPortletFj* must verify security about field SecurityServiceName and SecurityMainAction.

PortletWidget migration

Start of documentation for all portletwidget migration

  1. create/copy the screen in {component}PortletScreen and remove <portalPortlet properties

    • portletTypeId

    • component, subComponent, useScreen

      1. add screenName and screenLocation

    • useScript, useMenu

  2. copy the forms (and update screen if necessary)

  3. update screen with portletUiLabelDecorator

  4. update screen with screenlet and container if menu need it (id for setArea)

  5. update screen with script, if necessary

  6. update screen with menu, if necessary

  7. copy from controller for uri edit and action

  8. in Menu, replace

              <show-portlet portlet-id="${portalPortletId}" target="EditPersonPt" area-id="${subAreaDivId}"
                             image-location="${iconsPurpose.Edit}" image-title="${uiLabelMap.IconsTooltips_Edit}">
                  <parameter param-name="partyId" from-field="parameters.partyId"/>
              </show-portlet>
    with
                <link  text="Edit" target="editperson" link-type="anchor" target-window="viewPartyInfo"> <!-- usage du target-window pourdonner l'id de destination -->
                    <parameter param-name="partyId" from-field="parameters.partyId"/>
                    <parameter param-name="DONE_PAGE" from-field="DONE_PAGE"/>
                    <auto-parameters-portlet/>
    <!--                 TODO is it necessary to have 3 parameters not auto-parameters -->
    <!--                 <parameter param-name="portalPageId"    from-field="parameters.portalPageId"/> -->
    <!--                 <parameter param-name="portalPortletId" from-field="parameters.portalPortletId"/> -->
    <!--                 <parameter param-name="portletSeqId"    from-field="parameters.portletSeqId"/> -->
                    <image src="${iconsPurpose.Edit}" title="${uiLabelMap.IconsTooltips_Edit}"/>
                </link>
POC’s use cases
Operational

All example management by the two portal page ExampleMgmt et ExampleRecap.
On the find, the sub list are not yet manage.

Next step

Party component will the next step whith most of its functions

Vue.js
Vue.js general

todo

Components

A Vue.Js component is defined by 3 distinct blocks ( template, script, style ) which are regrouped in a single '.vue' file.

  1. Template :

    • Template must be contained in a single root element (div, span, table, ect…​ )

    • In template we can access computed properties and function with double curly bracket {{}}

    • Classic html attributes can be preceded by ':' to use script properties and js code instead of plain text

    • Vue.Js give us some directives (v-for, v-if v-on:click, ect…​) that are bind to script context and work like a classic attribute preceded by ':' and so can bind to script part and interpret js.

  2. Script

    • Script section is wrapped into an export default {} that contain the whole script elements. TIP: import have to be made before this export

    • This export is a map that can contain predefined keys used by Vue.Js (data, computed, methods, props, created, ect…​)

      • data() is a function that contain variable used is the component context.
        All variable contained in data() are reactive, which mean that Vue.Js will track any change on them and will reverberate theses changes everywhere there are used to reevaluate render.

      • computed is a map that contain evaluation based on reactive data.
        They can be used like a reactive variable in the component and will reevaluate itself when one of its entry had changed.

      • methods is a map containing helper function (handleClick, doPost, ect…​).
        WARNING: these functions don’t aim to be reactive.

      • props is an array of string who give attribute to the component for passing data from its parent to it.

      • This section can also contain hooks of the component life cycle (created(), mount(), beforeUpdate(), ect…​).
        Theses block of code will be executed when the hook is fired.
        See below :
        Component lifecycle

  3. Style
    This part is dedicated to internal css of the component.
    Style of this part is applied before other style of the project.

Vuex

Vuex is the centralised state system of the application. It allow us to create 'store' which contain data that can be accessed/modified by any component of the application.

A store is composed of 4 elements :

  1. State
    State is a map that contain all stored informations.
    State can only be modify by mutation. Default state’s data will be reactive.
    If Data had to be added in the state after its creation, they must be added with the method Vue.set() for them to be reactive.

  2. Mutations
    Mutations is a map that contain function allowed to alter state. By convention, mutation’s key have to be upper-case. Mutations can’t be accessed through code, they must be called by actions. Mutations must be synchronous.

  3. Actions
    Mutation first aim to fire mutation.
    Actions can be asynchronous, in which case there return a promise.

  4. Getters
    Getters allow to access state data.
    Getters are reactive.
    Getters can use parameters, if they are they return a function instead of a reactive variable.

Store can be split into modules who can be described in an index.js file, stores can so be stored into a modules repository.

Reactivity

todo

6.7.2. modular and generic UI

Aiming to have an open and modular ERP, it’s important that the user interface configuration allow to manage multiple screens from a set of screen "module" for manage same business object type in different business context.

Next chapters describe a user interface management system’s POC aiming to respond to theses modularity needs.

Use cases for POC-UI

Theses use cases are to be used for new UI POC, documentation associated and selenium unit task test.

All these use cases should be done with existing entities and services, if it’s necessary to develop one, simplify the use case, the goal is UI, not service or entity.

These use case description are done in a agile philosophy, only main point is present and during realization details choices will be discuss and done.

Preliminary remarks :
  1. In this document, the term "application" corresponding to "plugin component" in the ofbiz terminology which is not same as a "applications/trunk component" in ofbiz terminology. An application is dedicated for a business purpose for a user type, it’s build by assembling piece of ofbiz components, sometimes without any specifics entities, services and screen (ex: CRM-B2C, CRM-B2B, SFA are 3 applications uses by sales men)

  2. Each use case is on an "application" and is part of one of the menu of this application.

    Of course, this document describe only menu-option needed by the use-case. As it’s difficult to do a clear definition of "web-page" because it’s depending of theme/template, use case is for me at two level :

    1. screen, which can be well define

    2. page, which depend on default theme

    Of course, some of use case (screen or page) will be done by a previous one (ex : sometime edit is done by the same screen as add). It’s even, one of the re-usable important point (UI, Doc and Selenium)

  3. Each time a line (or point) start by a "?" the question is "is this point is needed ?"

Release and goal

Goal is the POC realization, not doing multiple super applications. POC realization should generate discussion and decision, each time be careful to mainly discuss on UI, Doc or Selenium and not on use case business justification. Use case are to be realistic but mainly as a support for a specifics UI, Doc or Selenium needed.

V1

Main Goal is to proof the technical points. Of course UI re-organization is the driver for this phase, documentation start to work in parallel but will wait first realization to test integration for help. For selenium unit task, it will be a simple usage of the new UI with the default theme, the sole purpose being to check that test with default theme is simple.

So never mind if all cases is not done, the list exist to give different classic case what we will need to know how to process it. Some case which seem to be duplicate from other can be use for beginner who want to help and check if the concept is understanding.

During V1 realization, UseCase list will be updated

V2

Main Goal is to check if the solution is useful for the different type of contributors

  • experiment developer

  • beginner developer

  • functional consultant for parameters

  • functional consultant for personalization

  • ? end user - for parameters ? (if it’s still possible with the new architecture)

Use Case list will be use as a deployment plan. The list contains similar case to these which are realize in V1, so those on V2 can be achieve by all types of contributors.

Documentation Goal
  • Apache OFBiz User documentation (asscidoc)

  • Apache OFBiz web site wiki

  • OFBiz Help

Selenium test
  1. demo data for each use case and scenario

  2. selenium scenario test for each page (or page group)

  3. selenium unit test for each screen

Simple Party Management
Which Sub-Application
  1. in HR application, simple employee management

  2. in CRM B2C application, simple customer (person) management

  3. in eCommerce, simple profile page

  4. in HR application, simple organization/place (group) management

  5. in CRM B2B application, simple customer (company) management

  6. in Facility application, simple worker management

Which Party sub-component
  1. Party - Person - PartyGroup

  2. Contact Mech,

    • with postal address, phone and mail;

    • one or two fixes purpose (ex: phone fix number and mobile phone number)

  3. Role

  4. Party Identification

  5. Party association

  6. Not UserLogin because all Security entities should be use and it will generate a too large domain for this POC

Which Screen
  1. Party

    • find, list

    • A person

      • add / edit, show

    • A group

      • add / edit, show

    • A company

      • add / edit, show

    • show a synthesis view (party/person/company, contact informations, roles, Identification)

      • Person

      • Company

      • PartyGroup

  2. Contact information

    • all contact informations (for one party / facility)

      • with and without purpose

      • with and without history

      • deactivated

    • add / edit postal address

    • add / edit mail

    • add / edit phone

  3. Role

    • list for a party

    • add a role (for a parent RoleType)

    • add a role in two step :

  4. select parent RoleType

  5. select the role

    • remove a role

  6. Party Identifications

    • list, add, remove

HR Employee management

In HR Component, starting person management with the more complete form about person.

  • Menu option to manage employee

    • find, list, show, add, edit and manage his

      • contact information

      • identification (3 idTypes, one mandatory, two optionals)

  • template page with a header (or sidebar or …​) to show on which employee we are

Use Case Screen :
  1. find Person

    • simple form (only on party or person)

    • with an add button (which can be show or not depending on parameter or authorization)

  2. Person list with an add button (which can be show or not depending on parameter or authorization)

  3. add a Person

  4. show a Person

  5. show a Person with sub-menu with two options : contact informations and Identifications

  6. edit a Person

  7. List of all contact informations for a person, with an add button (which can be show or not depending on parameter or authorization)

  8. add a postal address

  9. add a mail

  10. add a phone number (to go step by step, without purpose management, will be done in next Use Case group)

  11. edit a postal address

  12. edit a mail

  13. edit a phone number

  14. List of all identification number for a person, with an add button (which can be show or not depending on parameter or authorization)

  15. add a identification number with choice of identification type

  16. edit a identification number with choice of identification type

  17. add a identification number with a fix identification type

  18. edit a identification number with a fix identification type

Use Case Page :
  1. create a person

  2. search a person

  3. visualize a person

  4. manage informations about a person

  5. template page with a header (or sidebar or …​) to show on which employee we are, (for example to show all his knowledges, or his skills, or his positions, or his …​)

  6. manage informations about a person on one page, and with access at this page directly by a field (auto-completion on id, first, last name)

CRM B2C, customer mgnt

In a CRM B2C application, the customer (so, in this context, a person) management.
The difference from previous use case group is :

  1. person form is more simple than in HR

  2. role will be used to characterize customer position (suspect, prospect, with_Quote, customer)

Menu option to manage employee

  • find (with role field), list, show, add, edit and manage his

    • contact informations

    • identification (3idTypes, one mandatory, two optionals)

  • template page with a header (or sidebar or …​) to show on which customer we are

Use Case Screen :
  1. find Person with an add button (which can be show or not depending on parameter or authorization)

    • search field same as in HR find person

    • role field which can appear or not, when not appear a fix value has been put as parameters.

    • contact information field, phone, mail, town. These fields can be show or not by the user with a "deploy" button

  2. Person list with an add button (which can be show or not depending on parameter or authorization)

    • role field appear or not, when not appear a fix value has been put as parameters, so only person with this role appear

  3. add a Person, all main informations in the form

    • role

    • less field about person than in HR form

    • 1 postal address

    • 2 phone number

    • 1 identification number

  4. show a Person, all main informations in the screen with indicator for contact information and identification when there are more data that what it’s show.

  5. show a Person with sub-menu with options :

    • contact informations

    • Identifications

    • role history

    • change role : a direct action button

  6. edit a Person, only "Person" field

  7. a button bar to change role (ex: for a suspect, there are the 3 options), this use case is for having a action bar, in this business process case it’s maybe not a need, but for more complex object like order or task, it’s a classical need.

  8. List of all contact informations for a person, with one or multiple add buttons (which can be show or not depending on parameter or authorization) and purpose are show, it’s the second step, with purpose management.

  9. add a postal address (or just a purpose)

  10. add a mail

  11. add a phone number

  12. edit a postal address

  13. edit a mail

  14. edit a phone number

  15. List of all identification number for a person, with an add button (which can be show or not depending on parameter or authorization)

  16. add a identification number with choice of identification type

  17. edit a identification number with choice of identification type

Use Case Page
  1. create a new entry in CRM (role is choose during creation)

  2. search a "customer" (or suspect, prospect, …​)

  3. visualize a "customer"

  4. manage informations about a "customer"

  5. template page with a header (or sidebar or …​) to show on which "customer" we are, (for example to show all his quotes, or his orders, or …​)

  6. manage informations about a person on one page, and with access at this page directly by a field (auto-completion on id, first, last name)

eCommerce, profile page

A simple profile page.
The difference from previous use case will be mainly on Use Case Page because eCommerce theme could be more original and public user interface should be, most of the time, more simple.

Use Case Screen :
  1. show the person, all main informations in the screen with indicator for contact information and identification when there are more data that what it’s show.

  2. show the Person with sub-menu with options :

    • contact informations

    • Identifications

  3. edit a Person, only "Person" field

  4. List of all contact informations for a person, with an add button and purpose are show, purpose is need for invoice or shipping.

  5. add a postal address (or just a purpose)

  6. add a mail

  7. add a phone number

  8. edit a postal address

  9. edit a mail

  10. edit a phone number

Use Case Page :
  1. visualize the profile (the person) with edit button

  2. manage his contact informations

  3. manage his identifications

  4. All in one page, which can be look as a long page.

HR organization mgnt

In HR component, a simple organization/place (group) management.
Now PartyGroup management (very simple), but with complex screen to manage hierarchy. In this use case group we will use the word "group" for service or department, or subsiadiry.

  • Menu option to manage the Company organization

    • manage group

    • associated employee in a group

    • manage a hierarchy of group

Use Case Screen :
  1. find group (with a specific partyType)

    • simple form (only on party or partyGroup)

    • with an add button (which can be show or not depending on parameter orauthorization)

  2. PartyGroup list with an add button (which can be show or not dependingon parameter or authorization)

  3. add a group

  4. show a Person, all informations in screen with sub-menu with two options : contact informations and Identifications

  5. edit a Group

  6. List all contact informations for a group, with an add button (which can be show or not depending on parameter or authorization)

  7. add a postal address

  8. add a phone number

  9. edit a postal address

  10. edit a phone number

  11. List all identification number for a group, with an add button (which can be show or not depending on parameter or authorization)

  12. add a identification number with choice of identification type

  13. edit a identification number with choice of identification type

  14. add a identification number with a fix identification type

  15. edit a identification number with a fix identification type

  16. List all person associated to the group with two add buttons (which can be, individually, show or not depending on parameter or authorization)

    • add a manager

    • add a member

  17. List all group associated to the group (the child) with two add buttons (which can be, individually, show or not depending on parameter or authorization)

    • add an existing group as a child

    • create a new group and add it as a child

    • in the list, each group is a link to this screen, to be able to navigate top-down

    • a third button to go to the parent level, to be able to navigate bottom-up

    • the name of the group manager appear above the list

  18. ? List all parent group for a group or for a person ?

  19. show group hierarchy as a tree with action or detail at each level, top-down

  20. show group hierarchy as a tree with action or detail at each level, bottom-up

Use Case Page :
  1. search a group

  2. manage a group

  3. manage its contact informations

  4. manage hierarchy step by step (parent to child or child to parent)

  5. manage hierarchy with a tree view

  6. in HR employee, show the tree, top-down or bottom-up with the template "for an employee"

CRM B2B customer mgnt

In a CRM B2B application, the customer (so, in this context, a company) management.
For clarification, in these Use Cases, B2B is an other application than B2C.
The "CRM B2C & B2B" will be a third, but not in this list because it contains no specificity on screen-page definition

The main difference between B2C is :

  1. company versus person,

  2. contact management with PartyAssociation

  3. ? customer organization management ?

Use Case Screen :
  1. find customer (a company (specific partyType)) with an add button (which can be show or not depending on parameter or authorization)

    • search field are on multiple entities with some part deploy or not

    • role field which can appear or not, when not appear a fix value has been put as parameters.

    • contact information field, phone, mail, town. These fields can be show or not by the user with a "deploy" button

  2. Company list with an add button (which can be show or not depending on parameter or authorization)

    • role field appear or not, when not appear a fix value has been put as parameters, so only company with this role appear

  3. add a Company, all main informations in the form

    • role

    • field from PartyGroup

    • 1 postal address

    • 2 phone number

    • 2 identification number

  4. show a Company, all main informations in the screen with indicator for contact informations and identification when there are more data that what it’s show.

  5. show a Company with sub-menu with options :

    • contact informations

    • Identifications

    • role history

    • change role : a direct action button

  6. edit a Company, only "Company" field

  7. a button bar to change role (ex: for a suspect, there are the 3 options), this use case is for having a action bar.
    In this business process case it’s maybe not a need, but for more complex object like order or task, it’s a classical need.

  8. List of all contact informations for a company, with an add button (which can be show or not depending on parameter or authorization) and purpose are show, (so, with purpose management).

  9. add a postal address (or just a purpose)

  10. add a mail

  11. add a phone number with purpose

  12. edit a postal address

  13. edit a mail

  14. edit a phone number

  15. List of all identification number for a company, with an add button (which can be show or not depending on parameter or authorization)

  16. add a identification number with choice of identification type

  17. edit a identification number with choice of identification type

  18. list of contact (person) associated to this company with an add button (which can be show or not depending on parameter or authorization)

    • a contact is a person with contact information

    • list with only one line per contact

    • list of block with contact details for each

  19. edit a contact or his contact information

Use Case Page :

Exactly the same as the CRMB2C

  1. create a new entry in CRM (role is choose during creation)

  2. search a "customer" (or suspect, prospect, …​)

  3. visualize a "customer"

  4. manage informations about a "customer"

  5. template page with a header (or sidebar or …​) to show on which "customer" we are, (for example to show all his quotes, or his orders, or …​)

  6. manage informations about a company on one page, and with access at this page directly by a field (auto-completion on id, first, last name).

Facility worker mgnt

In Facility application, simple facility’s worker management.
For this last use case group, it’s a simplification of the previous one.
Only a very simple and short process for adding people.

It’s the last one, because the goal is to check if it’s easy and rapid to create (or parametrize) a new small application from existing one.

In the Warehouse Management application (simple version OOTB)

  • in the administration menu

    • the user menu to manage internal user per facility In the standard business process, it will be used mainly for login and authorization, in our case we will only manage person, his phone number and his facility (where he’s authorized)

    • the facility menu to manage contact informations and person authorized

Use Case Screen :
Already existing screen used
  1. find Person

    • simple form (only on party or person)

    • with an add button

  2. Person list with an add button

  3. add a Person, simple form 3-6 fields

  4. show a Person

  5. show a Person with sub-menu with option to manage contact informations

  6. edit a Person

  7. List of all contact informations for a person, with one or multiple add button

  8. add a mail

  9. add a phone number

  10. edit a mail

  11. edit a phone number

New Screen
  1. add a facility, simple form, if service exist, including some contact informations

  2. List of all existing facility

  3. List of all contact informations for a facility, with one or multiple add button

  4. List of all persons associated to the facility, with two add button

    • add an existing person

    • create a new person and add it to the facility

  5. List of all facility associated to a person, with one add button

    • add an existing facility

Use Case Page :
  1. manage facilities

  2. manage persons

  3. visualize a facility details (info, contact informations, persons associated)

6.7.3. Screenlet autonomous

in a modular approach, screenlet is an autonomous part of the screen, which mean that there can be action that only alter this part of the screen, mainly fired by itself.

Sreenlet allow a huge modularity gain in user interface, that way an user action (click on a link, type in a field, ect…​) must not precise the Sreenlet itself but a logical name which can be subscribed by one or more screenlet.

This logical name which is subscribed by screenlet is called watcherName, this field is a new attribute for the container tag.

6.7.4. FrontJs Glossary

watchers

They are objects stored in js store that can be altered remotely. watcher’s subscribers update themselves with the new value when it change.

watcherName

It is the key of a watcher

7. Core APIs

8. Development environment

8.1. Setup your environment

8.1.1. Java SE

8.1.2. IDE

Eclipse
Intellij Idea

8.1.3. Database

8.2. Web tools

The Webtools application is the UI-gateway to all the framework functions.

8.2.1. Help for Webtools Main page.

This is the default screen for the Webtools application.
Several links are present on this page to access specific tool screens directly.
Using the application menu you can select the tool you need.

  • The Logging section is used to view and configure the OFBiz system logs.

  • The Cache & Debug section is used to monitor the OFBiz cache system status. You can even set or clear some cache content or force Garbage collection with this tool.

  • The Artifact Info section is used to navigate through all OFBiz artifact files. When accessing this section the complete OFBiz code base is scanned and a list of all artifacts is offered to the user to be navigated. Please note that the initial scan can take a while to be completed.

  • The Entity Engine section is used to interact with the entities defined in the system. You can view the entity structures, search for entity content, navigate though related entities, etc.

  • The Service Engine section is used to interact with the services defined in the system. You can view all services details, monitor the jobs that are running, the active threads. You can even manually run a service or schedule a periodic/delaied job execution.

  • The Import/Export section is used to transfer entity content from the OFBiz system to external systems and viceversa. Various import/export systems and formats are available.

  • The Configuration section is used to set parameters for the OFBiz system.

9. From Mini Language to Groovy

This is a small guide for everybody involved in converting the Mini Language into Groovy.

Important
Why is this important?
This tutorial is directly linked to the efforts of converting all scripts in Mini Language to newer Groovy Scripts. All of this is done, because Groovy is much more readable and easier to review, more up to date and many other reasons, which can be found here: Proposal for deprecating Mini Language

To contribute, or just be up to date with the current process, you can look at the existing JIRA issue OFBIZ-9350 - Deprecate Mini Lang
Note
For memory, a description of the Mini Language guide can be found at the OFBiz wiki - Mini Language Reference

9.1. Groovy DSL (dynamic scripting library)

9.1.1. How to get Groovy support in your IDE

The following paragraph is for Eclipse users.

It is possible to get Groovy support in Eclipse by converting the loaded project to a Groovy Project. The project itself will work as before.

To do this just follow these few steps:

  1. Right-click on the project that has to be converted

  2. Click on "Configure"

  3. Click on "Convert to Groovy Project"

Eclipse will automatically load the file OfbizDslDescriptorForEclipse.dsld , in which the known fields and methods used in Groovy Scripts are defined.

9.1.2. Known Fields

property name: 'parameters'
type : 'java.util.Map'

These are the parameters given to the Groovy Script, when it is called as a service. It is equivalent to Map<String, Object> context in the Java-Service-Definition.

property name: 'context'
type: 'java.util.Map'

More parameters, which are, for example, given through a screen or another Groovy Script. This is important when the script is called through an action segment of a screen.

property name: 'delegator'
type: 'org.apache.ofbiz.entity.Delegator'

Normal instance of the Delegator, which is used for special database access.

property name: 'dispatcher'
type: 'org.apache.ofbiz.service.LocalDispatcher'

Normal instance of the LocalDispatcher, which is used to call services and other service-like operations.

property name: 'security'
type: 'org.apache.ofbiz.security.Security'

Normal instance of the Security-Interface with which permission checks are done.

9.1.3. Known Methods

method name: 'runService'
type: 'java.util.Map'
params: [serviceName: 'String', inputMap: 'java.util.Map']

Helping method to call services instead of dispatcher.runSync(serviceName, inputMap). Also possible: run service: serviceName, with: inputMap

method name: 'makeValue'
type: 'java.util.Map'
params: [entityName: 'String']

Helping method to make a GenericValue instead of delegator.makeValue(entityName). Creates an empty GenericValue of the specific entity.

method name: 'findOne'
type: 'java.util.Map'
params: [entityName: 'String', inputMap: 'java.util.Map']

Helping method to find one GenericValue in the database. Used instead of delegator.findOne(entityName, inputMap)

method name: 'findList'
type: 'java.util.List'
params: [entityName: 'String', inputMap: 'java.util.Map']

Helping method to find many GenericValue in the database. Used instead of delegator.findList(entityName, inputMap, null, null, null, false)

method name: 'select'
type: 'org.apache.ofbiz.entity.util.EntityQuery'
params: [entity: 'java.util.Set']

Helping method used instead of EntityQuery.use(delegator).select(…​)

method name: 'select', type: 'org.apache.ofbiz.entity.util.EntityQuery', params: [entity: 'String…​']
As above.

method name: 'from'
type: 'org.apache.ofbiz.entity.util.EntityQuery'
params: [entity: 'java.lang.Object']

Helping method used instead of EntityQuery.use(delegator).from(…​)

method name: 'success'
type: 'def'
params: [message: 'String']

Helping method used instead of ServiceUtil.returnSuccess(message)

method name: 'failure'
type: 'java.util.Map'
params: [message: 'String']

Helping method used instead of ServiceUtil.returnFailure(message)

method name: 'error'
type: 'def'
params: [message: 'String']

Helping method used instead of ServiceUtil.returnError(message)

method name: 'logInfo'
type: 'void'
params: [message: 'String']

Helping method used instead of Debug.logInfo(message, fileName)

method name: 'logWarning'
type: 'void'
params: [message: 'String']

Helping method used instead of Debug.logWarning(message, fileName)

method name: 'logError'
type: 'void'
params: [message: 'String']

Helping method used instead of Debug.logError(message, fileName)

method name: 'logVerbose'
type: 'void'
params: [message: 'String']

Helping method used instead of Debug.logVerbose(message, fileName)

The actual definition of the methods can be found in `/framework/service/src/main/java/org/apache/ofbiz/service/engine/GroovyBaseScript.groovy, the variables dctx, dispatcher and delegator are set in the file GroovyEngine.java which can be found in the same location.

9.2. Services

9.2.1. From MiniLang to Groovy

To see additional examples and finished conversions, which may help with occurring questions, click: OFBIZ-9350 - Deprecate Mini Lang There is a chance that a similar case has already been converted.

Important
When a simple-method ends, it will automatically at least return a success-map.

All the Groovy Services have to return success at least, too.

return success()

9.2.2. Getting started

MiniLang files consist of services, which, in most cases, implement services.

The get converted to Groovy like the following:

<!-- This is MiniLang -->
<simple-method method-name="createProductCategory" short-description="Create an ProductCategory">
   <!-- Code -->
</simple-method>
// This is the converted Groovy equivalent
/**
 * Create an ProductCategory
 */
def createProductCategory() {
    // Code
}

It will be useful for future developers, and everybody who has to check something in the code, to put at least the short-description as the new Groovydoc. This will hopefully more or less explain, what the method should or shouldn’t do. If the short-description isn’t helpful enough, feel free complete it.

The structure of if and else in MiniLang is a little different than the one from Groovy or Java and can be a bit confusing when first seen, so here is an example:

<if-empty field="parameters.productCategoryId">
    <sequenced-id sequence-name="ProductCategory" field="newEntity.productCategoryId"/>
<else>
    <set field="newEntity.productCategoryId" from-field="parameters.productCategoryId"/>
    <check-id field="newEntity.productCategoryId"/>
    <check-errors/>
</else>
</if-empty>
Note
Notice, that the else always starts before the if-tag is closed, but sometimes isn’t indented as one would expect it.

When navigating through bigger if-phrases, the navigation itself will be much easier through just clicking in the opening or closing if-tag; Eclipse will automatically mark the matching opening or closing if-tag for you.

There are two possibilities to initialize a field/variable in Groovy.

  1. To define a field/variable with its correct typing
    String fieldName = "value"`

  2. To just "define" a field/variable. The IDE you are working with may not recognize the typing, but OFBiz can work with it:
    def fieldName = "value"

9.3. Checking Fields

Minilang Groovy
<if-empty field="fieldName"></if-empty>
 //checks if fieldName is existent and/or empty
if (!fieldName) {}
<if-empty field="fieldName.property"></if-empty>
 // fieldName has to be existent, property doesn't need to
 // if known, that property does exist, the ? can be left out
if (!fieldName?.property) {}
 // CAUTION: every query like this in Groovy evaluates to a Boolean type
 // everything that is empty or false will turn into false:
 // null, [], [:], "", false -> false

if (UtilValidate.isEmpty(fieldName)) {}
<if>
    <condition>
        <or>
            <if-empty field="field1"/>
            <if-empty field="field2"/>
        </or>
    </condition>
    <then>
        <!-- code in if -->
    </then>
    <else>
        <!-- code in else -->
    </else>
</if>
if (!field1 || !field2) {
 // code in if
} else {
 // code in else
}
<if-compare-field field="product.primaryProductCategoryId" to-field="parameters.productCategoryId" operator="equals">
    <!-- code -->
</if-compare-field>
 // this will even work, if product is not existent or null
if (UtilValidate.areEqual(product?.primaryProductCategoryId, parameters.productCategoryId)) {
    // code
}
<if-instance-of field="parameters.categories" class="java.util.List"></if-instance-of>
if (parameters.categories instanceof java.util.List) {}

9.4. Setting Fields

Minilang Groovy
<set field="fieldName" value="value"/>
 // if fieldName is not initialized
String fieldName = "value"
 // if fieldName is initialized
fieldName = "value"
<set field="otherFieldName.property" value="value"/>
<set field="otherFieldName.otherProperty" value="true" type="Boolean"/>
<set field="otherFieldName.otherProperty" from-field="parameters.property/>
 // if otherFieldName is not yet initialized, you have to do it first
 // MiniLang does that automatically
Map otherFieldName = [:] // empty Map
 // now put the values in
otherFieldName = [
    property: "value",
    otherProperty: true
]
 // or the less efficient way
otherFieldName.property = "value"
otherFieldName.otherProperty = true

 // it is possible to put different values in later:
otherFieldName.property = parameters.property
<set field="thisFieldName" value="${groovy: []}" type="List"/>
 // this is easier in Groovy
List thisFieldName = []
<property-to-field resource="CommonUiLabels" property="CommonGenericPermissionError" field="failMessage"/>
<!-- there are different cases of this, which are not distinguished in MiniLang -->
<property-to-field resource="general.properties" property="currency.uom.id.default" field="parameters.rateCurrencyUomId"/>
String failMessage = UtilProperties.getMessage("CommonUiLabels", "CommonGenericPermissionError", parameters.locale)
 // in Groovy there can be a difference for the second case
parameters.rateCurrencyUomId = UtilProperties.getPropertyValue('general.properties', 'currency.uom.id.default')
<clear-field field="product.primaryProductCategoryId"/>
product.primaryProductCategoryId = null

9.5. Starting Services

Minilang Groovy
<set field="relatedCategoryContext.parentProductCategoryId"  from-field="defaultTopCategoryId"/>
<call-service service-name="getRelatedCategories" in-map-name="relatedCategoryContext">
    <result-to-field result-name="categories" field="resCategories"/>
</call-service>
def relatedCategoryContext = [parentProductCategoryId: defaultTopCategoryId]
def serviceResult = run service: "getRelatedCategoryies", with: relatedCategoryContext
def resCategories = serviceResult.categories
 // if it is not too confusing to read you can leave out the extra variable
run service: "getRelatedCategoryies", with: [parentProductCategoryId: defaultTopCategoryId]
<set-service-fields service-name="productCategoryGenericPermission" map="parameters" to-map="productCategoryGenericPermissionMap"/>
<call-service service-name="productCategoryGenericPermission" in-map-name="productCategoryGenericPermissionMap">
    <results-to-map map-name="genericResult"/>
</call-service>
 // instead of setting the service fields from parameters, it is possible to run the service with the parameters map
Map genericResult = run service: "productCategoryGenericPermission", with: parameters

9.6. Preparing Service Results

Minilang Groovy
<field-to-result field="fieldBudgetId" result-name="budgetId"/>
 // MiniLang knows this implicitly
def result = success()
result.budgetId = fieldBudgetId
return result

9.7. Database Communication

Minilang Groovy
<make-value entity-name="FinAccountTrans" value-field="newEntity"/>
<set-nonpk-fields map="parameters" value-field="newEntity"/>
<set-pk-fields map="parameters" value-field="newEntity"/>
 // this is the easy way
GenericValue newEntity = makeValue("FinAccountTrans", parameters)
 // this is also possible
GenericValue newEntity = makeValue("FinAccountTrans")
newEntity.setPKFields(parameters)
newEntity.setNonPKFields(parameters)
<entity-and entity-name="BudgetStatus" list="budgetStatuses">
    <field-map field-name="budgetId" from-field="parameters.budgetId"/>
    <order-by field-name="-statusDate"/>
</entity-and>
 // this can also be done in one line, but it can easily become unreadable
def budgetStatuses = from("BudgetStatus")
    .where("budgetId", paramters.budgetId)
    .orderBy("-statusDate")
    .queryList()
<entity-one entity-name="StatusValidChange" value-field="statusValidChange">
    <field-map field-name="statusId" from-field="budgetStatus.statusId"/>
    <field-map field-name="statusIdTo" from-field="parameters.statusId"/>
</entity-one>
<!-- entity-one can be called without child elements, too -->
<entity-one entity-name="Product" value-field="product" auto-field-map="true"/>
 // MiniLang has false set for useCache as the default value
statusValidChange = findOne("StatusValidChange", [statusId: budgetStatus.statusId, statusIdTo: parameters.statusId], false)
 // this is also possible
statusValidChange = from("StatusValidChange")
    .where("statusId", budgetStatus.statusId, "statusIdTo", parameters.statusId)
    .queryOne()
 // if there are no child elements, this can be used
GenericValue product = from("Product").where(parameters).queryOne()
<find-by-primary-key entity-name="ProductCategoryMember" map="lookupPKMap" value-field="lookedUpValue"/>
GenericValue lookedUpValue = findOne("ProductCategoryMember", lookupPKMap, false)
 // this is also possible
lookedUpValue = from("ProductCategoryRole")
    .where(lookupPKMap)
    .queryOne()
<entity-condition entity-name="ProductCategoryContentAndInfo" list="productCategoryContentAndInfoList" filter-by-date="true" use-cache="true">
    <condition-list combine="and">
        <condition-expr field-name="productCategoryId" from-field="productCategoryList.productCategoryId"/>
        <condition-expr field-name="prodCatContentTypeId" value="ALTERNATIVE_URL"/>
    </condition-list>
    <order-by field-name="-fromDate"/>
</entity-condition>
<!-- entity-condition can also be used with the "or" operator -->
<entity-condition entity-name="ProdCatalogCategory" list="prodCatalogCategoryList" filter-by-date="true">
    <condition-list combine="and">
        <condition-expr field-name="productCategoryId" from-field="parameters.productCategoryId"/>
        <condition-list combine="or">
            <condition-expr field-name="prodCatalogCategoryTypeId" value="PCCT_VIEW_ALLW"/>
            <condition-expr field-name="prodCatalogCategoryTypeId" value="PCCT_PURCH_ALLW"/>
        </condition-list>
    </condition-list>
</entity-condition>
 // the Groovy methods use the "and" and "equals" operator as default values
List productCategoryContentAndInfoList = from("ProductCategoryContentAndInfo")
    .where("productCategoryId", productCategoryList.productCategoryId, "prodCatContentTypeId", "ALTERNATIVE_URL")
    .cache().orderBy("-fromDate")
    .filterByDate()
    .queryList()
 // with the use of the "or" operator you have to build your condition like this
EntityCondition condition = EntityCondition.makeCondition([
    EntityCondition.makeCondition([
        EntityCondition.makeCondition("prodCatalogCategoryTypeId", "PCCT_VIEW_ALLW"),
        EntityCondition.makeCondition("prodCatalogCategoryTypeId", "PCCT_PURCH_ALLW")
    ], EntityOperator.OR),
    EntityCondition.makeCondition("productCategoryId", parameters.productCategoryId)
])
List prodCatalogCategoryList = from("ProdCatalogCategory").where(condition).filterByDate().queryList()
<make-value entity-name="FinAccountTrans" value-field="newEntity"/>
<set-nonpk-fields map="parameters" value-field="newEntity"/>
<!-- In this case multiple fields of the GenericValue are set -->
<make-value entity-name="ProductCategoryRollup" value-field="newLimitRollup"/>
<set field="newLimitRollup.productCategoryId" from-field="newEntity.productCategoryId"/>
<set field="newLimitRollup.parentProductCategoryId" from-field="productCategoryRole.productCategoryId"/>
<set field="newLimitRollup.fromDate" from-field="nowTimestamp"/>
def newEntity = makeValue("FinAccountTrans", parameters)
 // you can set multiple fields of a GenericValue like this
def newLimitRollup = makeValue("ProductCategoryRollup", [
    productCategoryId: newEntity.productCategoryId,
    parentProductCategoryId: productCategoryRole.productCategoryId,
    fromDate: nowTimestamp
])
<set field="statusValidChange.prop" value="value"/>
statusValidChange.prop = "value"
<create-value value-field="newEntity"/>
newEntity.create()
<store-value value-field="newEntity"/>
<store-list list="listToStore"/>
newEntity.store()
delegator.storeAll(listToStore)
<clone-value value-field="productCategoryMember" new-value-field="newProductCategoryMember"/>
def newProductCategoryMember = productCategoryMember.clone()
<remove-value value-field="lookedUpValue"/>
lookedUpValue.remove()
<sequenced-id sequence-name="ProductCategory" field="newEntity.productCategoryId"/>
newEntity.productCategoryId = delegator.getNextSeqId("ProductCategory")
<check-id field="newEntity.productCategoryId"/>
UtilValidate.checkValidDatabaseId(newEntity.productCategoryId)
<make-next-seq-id value-field="newEntity" seq-field-name="linkSeqId"/>
delegator.setNextSubSeqId(newEntity, "linkSeqId", 5, 1)
 // the numbers 5 and 1 are used in the Java implementation of the MiniLang method
 // and can also be found as the default values in the MiniLang documentation

9.8. Permissions

Caution
To also check for admin-permissions, this method has to be used:
hasEntityPermission(permission, action, userLogin)

If the method is used with wildcards, it is important to not forget the underscore, which comes before the parameter action!

Minilang Groovy
<check-permission permission="CATALOG" action="_CREATE">
    <alt-permission permission="CATALOG_ROLE" action="_CREATE"/>
    <fail-property resource="ProductUiLabels" property="ProductCatalogCreatePermissionError"/>
</check-permission>
<check-errors/>
if (!(security.hasEntityPermission("CATALOG", "_CREATE", parameters.userLogin)
    || security.hasEntityPermission("CATALOG_ROLE", "_CREATE", parameters.userLogin))) {
    return error(UtilProperties.getMessage("ProductUiLabels", "ProductCatalogCreatePermissionError", parameters.locale))
}
<set field="hasCreatePermission" value="false" type="Boolean"/>
<if-has-permission permission="${primaryPermission}" action="${mainAction}">
    <set field="hasCreatePermission" value="true" type="Boolean"/>
</if-has-permission>
 // this will automatically be set to false if the user doesn't have the permission
def hasCreatePermission = security.hasEntityPermission(primaryPermission, "_${mainAction}", parameters.userLogin)

9.9. Timestamp And System Time

The first two simple-method are deprecated; the third method should have been used instead.

Minilang Groovy
<now-timestamp field="nowTimestamp"/>
Timestamp nowTimestamp = UtilDateTime.nowTimestamp()
<now-date-to-env field="nowDate"/>
Timestamp nowDate = UtilDateTime.nowTimestamp()
<!-- this method also has the parameter "type", which is set to 'java.sql.timestamp' as default -->
<now field="fooNow"/>
Timestamp fooNow = UtilDateTime.nowTimestamp()
<if-compare-field field="productCategoryMember.thruDate" to-field="expireTimestamp" operator="less" type="Timestamp">
    <!-- code -->
</if-compare-field>
Timestamp thruDate = productCategoryMember.thruDate
if (thruDate && thruDate.before(expireTimestamp)) {
    // code
}

9.10. Logging

Since all of the log methods are know to the Groovy Language, it is possible to just nearly use them as they are in MiniLang.
For further explanation, here are some examples:

Minilang Groovy
<log level="verbose" message="Permission check failed, user does not have permission"/>
logVerbose("Permission check failed, user does not have the correct permission.")
<log level="info" message="Applying feature [${productFeatureId}] of type [${productFeatureTypeId}] to product [${productId}]"/>
logInfo("Applying feature [${productFeatureId}] of type [${productFeatureTypeId}] to product [${productId}]")

9.11. General

Minilang Groovy
<call-simple-method method-name="checkCategoryRelatedPermission"/>
<check-errors/>
 // simple-methods inside of classes, as long as they are not services, will be called like normal methods
Map res = checkCategoryRelatedPermission("updateProductCategory", "UPDATE", null, null)
if (!ServiceUtil.isSuccess(res)) {
    return res
}
<iterate list="subCategories" entry="subCategory">
    <!-- code -->
</iterate>
for (def subCategory : subCategories) {
    // code
}
subCategories.each { subCategory ->
    // code
}
<iterate-map map="parameters.productFeatureIdByType" key="productFeatureTypeId" value="productFeatureId">
    <!-- in here something should happen with value and key -->
</iterate-map>
for (Map entry : parameters.productFeatureIdByType.entrySet()) {
    def productFeatureTypeId = entry.getKey()
    def productFeatureId = entry.getValue()
    // in here something should happen with value and key
}
<if>
    <condition>
        <not>
            <or>
                <if-has-permission permission="CATALOG" action="_${checkAction}"/>
                <and>
                    <if-has-permission permission="CATALOG_ROLE" action="_${checkAction}"/>
                    <not><if-empty field="roleCategories"/></not>
                </and>
            </or>
        </not>
    </condition>
    <then>
        <!-- code -->
    </then>
</if>
if (!security.hasEntityPermission("CATALOG", "_${checkAction}", parameters.userLogin)
    && !(security.hasEntityPermission("CATALOG_ROLE", "_${checkAction}", parameters.userLogin)
    && roleCategories)) {
    // code
}
<set field="validDate" from-field="parameters.validDate"/>
<if-not-empty field="validDate">
    <filter-list-by-date list="productCategoryMembers" valid-date="validDate"/>
</if-not-empty>
def query = from("ProductCategoryMember").where("productCategoryId", parameters.productCategoryId)
if (parameters.validDate) {
    query.filterByDate()
}
List productCategoryMembers = query.queryList()
<order-map-list list="productsList">
    <order-by field-name="sequenceNum"/>
</order-map-list>
productsList = EntityUtil.orderBy(productsList, ["sequenceNum"])

9.12. Where to find MiniLang implementation

If you find yourself in a position, where you don’t know how to convert a certain tag from MiniLang to Groovy, you can always check the Java implementation of the MiniLang method.
All of the methods have an existing Java implementation and you can find all of them in this folder: /ofbiz/trunk/framework/minilang/src/main/java/org/apache/ofbiz/minilang/method

The interesting part of this implementation is the method exec(), which actually runs the MiniLang tag.
The tag <remove-by-and> for example is realized using this part of code here:

@Override

public boolean exec(MethodContext methodContext) throws MiniLangException {
    @Deprecated
    String entityName = entityNameFse.expandString(methodContext.getEnvMap());
    if (entityName.isEmpty()) {
        throw new MiniLangRuntimeException("Entity name not found.", this);
    }
    try {
        Delegator delegator = getDelegator(methodContext);
        delegator.removeByAnd(entityName, mapFma.get(methodContext.getEnvMap()));
    } catch (GenericEntityException e) {
        String errMsg = "Exception thrown while removing entities: " + e.getMessage();
        Debug.logWarning(e, errMsg, module);
        simpleMethod.addErrorMessage(methodContext, errMsg);
        return false;
    }
    return true;
}

In this you can find one important part of code, which is:

delegator.removeByAnd(entityName, mapFma.get(methodContext.getEnvMap()));

This tells you, that, if you’re trying to convert the tag <remove-by-and>, you can use delegator.removeByAnd() in Groovy.

10. Testing

10.1. Unit Test (Using JUnit)

10.1.1. How to define a unit test?

  1. Define test-suite in ofbiz-component.xml like this:

        <test-suite loader="main" location="testdef/servicetests.xml"/>
  2. Create test-case in test-suite file.

        <test-suite suite-name="servicetests"
            xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
            xsi:noNamespaceSchemaLocation="http://ofbiz.apache.org/dtds/test-suite.xsd">
            ....
            ....
            <test-case case-name="test-case-name">
            ...
            </test-case>
            ....
            ....
        </test-suite>

10.1.2. How to create a test case?

Define a test-case in an XML test-suite file like this:

    <test-case case-name="test-case-name">
        ...
    </test-case>

The test-case tag contains details of each test type:

Entity XML

Specific entity xml and its action would like to be tested in entity-xml-url attribute and action attribute respectively like this:

    <test-case case-name="service-dead-lock-retry-assert-data">
        <entity-xml action="assert" entity-xml-url="component://service/testdef/data/ServiceDeadLockRetryAssertData.xml"/>
    </test-case>
JUnit

Specific class’s name which will be tested, in a class-name attribute like this:

    <test-case case-name="service-tests">
        <junit-test-suite class-name="org.apache.ofbiz.service.test.ServiceEngineTests"/>
    </test-case>
Service

Specific service’s name which will be tested in a service-name attribute like this:

    <test-case case-name="service-lock-wait-timeout-retry-test">
        <service-test service-name="testServiceLockWaitTimeoutRetry"/>
    </test-case>
Simple Method

Specific simple method’s location and name which will be tested in a location and a name attribute respectively like this:

    <test-case case-name="auto-accounting-transaction-tests-PoReceipt">
        <simple-method-test location="component://accounting/minilang/test/AutoAcctgTransTests.xml" name="testAcctgTransOnPoReceipts"/>
    </test-case>

10.1.3. How to run a unit test?

You can run unit test by run 'gradle' with following target:

Execute all unit tests

gradlew test

Execute all integration tests

gradlew testIntegration

OR

gradlew 'ofbiz --test'

Execute integration tests with a different log level

It is possible to start integration tests with a log level different from the default one. The log levels allowed are listed below from most verbose to least verbose:

  • always

  • verbose

  • timing

  • info

  • important

  • warning

  • error

  • fatal

gradlew "ofbiz --test loglevel=fatal"

Execute an integration test case

run a test case, in this example the component is "entity" and the case name is "entity-tests"

gradlew "ofbiz --test component=entity --test suitename=entitytests --test case=entity-query-tests"

Execute an integration test case in debug mode with verbose log

listens on port 5005

gradlew "ofbiz --test component=entity --test loglevel=verbose" --debug-jvm

Execute an integration test suite

gradlew "ofbiz --test component=entity --test suitename=entitytests"

Execute an integration test suite in debug mode

listens on port 5005

gradlew "ofbiz --test component=entity --test suitename=entitytests" --debug-jvm

10.1.4. Possible error messages

Some error messages in the log are not important and often caused by the test.

Roll back

Roll back error message occurred when transaction roll back data. This error message will be in between starting and finished test cass line like this:

    [java] 2009-12-22 16:05:28,349 (main) [   TestRunContainer.java:238:INFO ] [JUNIT] : [test case's name] starting...
    [java] 2009-12-22 16:05:28,355 (main) [    TransactionUtil.java:336:ERROR]
    ....
    ....
    ....
    [java] ---- exception report ----------------------------------------------------------
    [java] [TransactionUtil.rollback]
    [java] Exception: java.lang.Exception
    [java] Message: Stack Trace
    [java] ---- stack trace ---------------------------------------------------------------
    [java] java.lang.Exception: Stack Trace
    [java] org.apache.ofbiz.entity.transaction.TransactionUtil.rollback(TransactionUtil.java:335)
    [java] org.apache.ofbiz.entity.transaction.TransactionUtil.rollback(TransactionUtil.java:317)
    [java] org.apache.ofbiz.entity.test.EntityTestSuite.testTransactionUtilRollback(EntityTestSuite.java:437)
    [java] sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
    [java] sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:39)
    [java] sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:25)
    [java] java.lang.reflect.Method.invoke(Method.java:597)
    [java] junit.framework.TestCase.runTest(TestCase.java:154)
    [java] junit.framework.TestCase.runBare(TestCase.java:127)
    [java] junit.framework.TestResult$1.protect(TestResult.java:106)
    [java] junit.framework.TestResult.runProtected(TestResult.java:124)
    [java] junit.framework.TestResult.run(TestResult.java:109)
    [java] junit.framework.TestCase.run(TestCase.java:118)
    [java] junit.framework.TestSuite.runTest(TestSuite.java:208)
    [java] junit.framework.TestSuite.run(TestSuite.java:203)
    [java] junit.framework.TestSuite.runTest(TestSuite.java:208)
    [java] junit.framework.TestSuite.run(TestSuite.java:203)
    [java] org.apache.ofbiz.testtools.TestRunContainer.start(TestRunContainer.java:146)
    [java] org.apache.ofbiz.base.container.ContainerLoader.start(ContainerLoader.java:100)
    [java] org.apache.ofbiz.base.start.Start.startStartLoaders(Start.java:272)
    [java] org.apache.ofbiz.base.start.Start.startServer(Start.java:322)
    [java] org.apache.ofbiz.base.start.Start.start(Start.java:326)
    [java] org.apache.ofbiz.base.start.Start.main(Start.java:411)
    [java] --------------------------------------------------------------------------------
    [java]
    ....
    ....
    ....
    [java] 2009-12-22 16:05:28,366 (main) [    TransactionUtil.java:346:INFO ] [TransactionUtil.rollback] transaction rolled back
    [java] 2009-12-22 16:05:28,370 (main) [   TestRunContainer.java:234:INFO ] [JUNIT] : [test case's name] finished.

10.1.5. Test result

After you run unit test, you can see the result of the testing.
If you use run-tests target, you can see test result web page by view runtime/logs/test-results/html/index.html file in web browser and see JUnit Test Result files for each test suite in runtime/logs/test-results directory.
If you use other target you only see JUnit Test Result file in runtime/logs/test-results.

10.2. Integration Tests

11. Deployment

For a core configuration guide check the OFBiz configuration Guide (some points are not up to date).

11.1. email

11.1.1. HowTo use email in OFBiz

Receiving Email.

OFBiz can receive email for multiple email addresses and via an MCA can create Communication events for the involved parties of the email.
Email attachments, via again the MCA are stored in the content component and can be accessed via the content Id.
Examples of an MCA can be found in the Party and Content Component.

To receive email a single POP/IMAP mailbox is polled at regular intervals.
This is configured in the ${ofbiz install dir}/framework/service/ofbiz-component.xml file in the commented section JavaMail Listener Container.

Any email address you want to be handled by OFBiz need to be forwarded to this single mailbox by an external mail server.
OFBiz then will try to match the email addresses to existing parties and will create a single communication event referring to the found parties.

If an incoming email address cannot be matched against a party, the communication event will get a special status and the receiving party can either delete the communication event or can ask the system to automatically create a party from the incoming email address.

By default the configuaration file has the email poller commented out.
The parameters to this function are pretty self explanatory.

Sending Email in OFBiz

Various parts in the OFBiz application are sending out email for various reasons.

Sending out email is controlled in the ${ofbiz install dir}/framework/common/config/general.properties file with the following parameters:

  • SMTP Server (relay host): mail.smtp.relay.host

  • SMTP Username (if needed): mail.smtp.auth.user

  • SMTP Password (if needed): mail.smtp.auth.password

  • Turn on email notifications by setting the mail.notifications.enabled property to "Y".

12. Security

12.1. OFBiz in production

In matter of security, to be sure to be up to date, the first place to look at is https://ofbiz.apache.org/security.html

For more details you may be also interested by https://issues.apache.org/jira/browse/OFBIZ-1525

If you look for how to handle access permissions, this page should help you: https://cwiki.apache.org/confluence/display/OFBIZ/OFBiz+Security+Permissions

Last but not least, you will certainly find useful, the security section of The Apache OFBiz Technical Production Setup Guide

12.1.1. Gradle Update

OFBiz uses Gradle for many things, including building and running OFBiz.

Out Of The Box (OOTB) you get versions of third parties libraries which might need to be updated from time to time. For that you may take as an example to follow https://issues.apache.org/jira/browse/OFBIZ-10213

12.2. Passwords and JWT (JSON Web Tokens) usage

12.2.1. How are set and used passwords and JWT in Apache OFBiz

The Apache OFBiz Project Release trunk

Passwords

Demo and seed passwords are stored in files loaded through security ofbiz-component.xml. To know more about that be sure to read:

Caution
These configuration steps are not to be neglected for the security of a production environment
JWT usage

JSON Web Token (JWT) is an Internet standard for creating JSON-based access tokens that assert some number of claims.

We currently use JWT in 2 places:

  1. To let users safely recreate passwords (in backend and frontend)

  2. To allow SSO (Single Sign-on) jumpings from an OFBiz instance to another on another domain, by also using CORS ( Cross-origin resource sharing) on the target server

How to secure JWT

When you use JWT, in order to sign your tokens, you have the choice of using a sole so called secret key or a pair of public/private keys: https://jwt.io/introduction/.

You might prefer to use pair of public/private keys, for now by default OFBiz uses a simple secret key. Remains the way how to store this secret key. This is an interesting introduction about this question.

  1. The first idea which comes to mind is to use a property in the security.properties file. It’s safe as long as your file system is not compromised.

  2. You may also pick a SystemProperty entity (overrides the file property). It’s safe as long as your DB is not compromised.

  3. We recommend to not use an environment variable as those can be considered weak:

  4. You may want to tie the encryption key to the logged in user. This is used by the password recreation feature. The JWT secret key is salted with a combination of the current logged in user and her/his password. This is a simple and effective safe way.

  5. Use a JTI (JWT ID). A JTI prevents a JWT from being replayed. This auth0 blog article get deeper in that. The same is kinda achieved with the password recreation feature. When the user log in after the new password creation, the password has already been changed. So the link (in the sent email) containing the JWT for the creation of the new password can’t be reused.

  6. Tie the encryption key to the hardware. You can refer to this Wikipedia page for more information.

  7. If you want to get deeper in this get to this OWASP documentation

Note: if you want to use a pair of public/private keys you might want to consider leveraging the Java Key Store that is also used by the "catalina" component to store certificates. Then don’t miss to read:

Also remember that like everything a JWT can be attacked and, though not used or tried in OFBiz yet, a good way is to mitigate an attack by using a KeyProvider. I have created OFBIZ-11187 for that.

Properties

The security.properties file contains five related properties:

# -- If false, then no externalLoginKey parameters will be added to cross-webapp urls
security.login.externalLoginKey.enabled=true
# -- Security key used to encrypt and decrypt the autogenerated password in forgot password functionality.
#    Read Passwords and JWT (JSON Web Tokens) usage documentation to choose the way you want to store this key
login.secret_key_string=login.secret_key_string
# -- Time To Live of the token send to the external server in seconds
security.jwt.token.expireTime=1800
# -- Enables the internal Single Sign On feature which allows a token based login between OFBiz instances
# -- To make this work you also have to configure a secret key with security.token.key
security.internal.sso.enabled=false
# -- The secret key for the JWT token signature. Read Passwords and JWT (JSON Web Tokens) usage documentation to choose the way you want to store this key
security.token.key=security.token.key

There are also SSO related SystemProperties in SSOJWTDemoData.xml:

    <SystemProperty systemResourceId="security" systemPropertyId="security.internal.sso.enabled" systemPropertyValue="false"/>
    <SystemProperty systemResourceId="security" systemPropertyId="security.token.key" systemPropertyValue="security.token.key"/>
    <SystemProperty systemResourceId="security" systemPropertyId="SameSiteCookieAttribute" systemPropertyValue="strict"/>
Internal SSO

The introduction of the same-site attribute set to 'strict' for all cookies prevents the internal Single Sign On feature. Why is clearly explained here.

So same-site attribute set to 'none' is necessary for the internal SSO to work, 'lax' is not enough. So if someone wants to use the internal SSO feature s/he also needs to use the CSRF token defense. If s/he wants to be safe from CSRF attacks. Unfortunately, due backporting difficulties, this option is currently (2020-04-15) only available in trunk.

Fecth API

An alternative would be to use the Fetch Javascript API with the

credentials: "include"

For those interested, there are more information in https://issues.apache.org/jira/browse/OFBIZ-11594

Last but not least

Be sure to read Keeping OFBiz secure

12.3. CSRF defense

12.3.1. How is done the CSRF defense in Apache OFBiz and how to adapt it if needed

The Apache OFBiz Project Release trunk

The same-Site attribute

The SameSite attribute is an effective counter measure to cross-site request forgery, cross-site script inclusion, and timing attacks.

— According to OWASP ZAP

By default OOTB the SameSiteFilter property sets the same-site attribute value to 'strict. SameSiteFilter allows to change to 'lax' if needed. If you use 'lax' we recommend that you set the csrf.defense.strategy property to org.apache.ofbiz.security.CsrfDefenseStrategy in order to provide an effective defense against CSRF attacks.

Properties

The security.properties file contains related properties:

# -- By default the SameSite value in SameSiteFilter is 'strict'.
# -- This property allows to change to 'lax' if needed.
# -- If you use 'lax' we recommend that you set
# -- org.apache.ofbiz.security.CsrfDefenseStrategy
# -- for csrf.defense.strategy (see below)
SameSiteCookieAttribute=
# -- The cache size for the Tokens Maps that stores the CSRF tokens.
# -- RemoveEldestEntry is used when it's get above csrf.cache.size
# -- Default is 5000
# -- TODO: possibly separate tokenMap size from partyTokenMap size
csrf.cache.size=
# -- Parameter name for CSRF token. Default is "csrf" if not specified
csrf.tokenName.nonAjax=
# -- The csrf.entity.request.limit is used to show how to avoid cluttering the Tokens Maps cache with URIs starting with "entity/"
# -- It can be useful with large Database contents, ie with a large numbers of tuples, like "entity/edit/Agreement/10000, etc.
# -- The same principle can be extended to other cases similar to "entity/" URIs (harcoded or using similar properties).
# -- Default is 3
csrf.entity.request.limit=
# -- CSRF defense strategy.
# -- Because OFBiz OOTB also sets the SameSite attribute to 'strict' for all cookies,
# -- which is an effective CSRF defense,
# -- default is org.apache.ofbiz.security.NoCsrfDefenseStrategy if not specified.
# -- Use org.apache.ofbiz.security.CsrfDefenseStrategy
# -- if you need to use a 'lax' for SameSiteCookieAttribute
csrf.defense.strategy=

There is also a SystemProperty in SSOJWTDemoData.xml:

<SystemProperty systemResourceId="security" systemPropertyId="SameSiteCookieAttribute" systemPropertyValue="strict"/>

12.4. Impersonation

12.4.1. What is Impersonation in Apache OFBiz

The Apache OFBiz Project Release trunk

Introduction to User impersonation

User Impersonation is a feature that offer a way to select a user login and impersonate it, i.e. see what the user could see navigating through the application in his name.

How do this work ?

An authorized user (see security and controls section for configuration), can select a user that will be impersonated.

The impersonation start, if everything is well configured, in current application (partymgr for the demo). Everything appears like if we were logged in with the userLoginId and the valid password (though we know nothing about it)

The only thing showing that we currently are impersonating a user is the little bottom-right image :

Impersonate icon

This icon indicates, when clicking on it, the user impersonated, and offer a way to depersonate.

The impersonate period is stored for audit purpose, and if the impersonator forgot to depersonate, the period is terminated one hour after impersonation start.

Security

This feature can draw some concerns about security aspect. This paragraph will introduce every controls and properties that have been implemented around the impersonation feature.

Caution
These configuration steps are not to be neglected for a production environment since this feature offer a way to act in place of another user.
Properties

The security.properties file introduce two properties that control impersonation feature :

security.disable.impersonation = true

This property, set by default to true, controls the activation of impersonation feature. If no configuration is done any user trying to use impersonation will face an error message, indicating that the feature is disabled.

To enable impersonation this property need to be set to false

security.login.authorised.during.impersonate = false

This property controls the way impersonation occurred to the impersonated user :

In default configuration, the impersonated user see nothing and can use the application without knowing that he is currently impersonated. Several authorized user can impersonate a same login without any issue.

Note
This configuration is intended for testing/QA environment allowing any authorized user to impersonate a login to validate its configuration, test the application etc.

Set to true, this configuration improve the control of the data generated by the impersonated user. Indeed, Only one authorized user can impersonate a login at the same time, and during the impersonation process, the impersonated user is unable to act within the application.

Since the impersonation period is stored in database, the actions done by the authorized user can be identified if there is the need to do so.

Note
This configuration is intended for production environment
Controls
The permission

First, to be able to use impersonation, a user need to possess IMPERSONATE_ADMIN permissions. Demo data offer IMPERSONATION security group for this purpose.
In demo data, FULLADMIN security group also possess the permission.

Permission based user restriction

An authorized user cannot impersonate any user. There are two main controls that will restrict the impersonation feature.

Cannot impersonate Admin user

It is impossible to impersonate a user that is granted any of the admin permission :

"IMPERSONATE_ADMIN"
"ARTIFACT_INFO_VIEW"
"SERVICE_MAINT"
"ENTITY_MAINT"
"UTIL_CACHE_VIEW"
"UTIL_DEBUG_VIEW"
Cannot impersonate more privileged user

It is impossible to impersonate a user that has more permission than your user. Even if the missing persmission is a minor one.

12.5. Gradle Dependency Verification

The Apache OFBiz Project Release trunk

Caution
This feature is for now disabled. You may use it locally if you want…​

As it’s a long read you might prefer this summary:

Note
the dependency verification is an incubating feature. So we will wait before backporting from trunk…​

By default OFBiz comes with OOTB Gradle dependency verification.

This means that it embeds a verification-metadata.xml file and a verification-keyring.gpg in OFBiz gradle sub-directory which is used during builds and other tasks to verify dependencies.

These files are initially created using :

Tip
gradlew --write-verification-metadata pgp,sha256 help
gradlew --write-verification-metadata pgp,sha256 --export-keys

These command creates or updates the verification-metadata.xml and verification-keyring.gpg files which respectively contains the checksums for each of declared dependencies and the related keys

Currently the status is it’s incomplete in OFBiz. You get this message:

  • Some artifacts aren’t signed or the signature couldn’t be retrieved.

  • Some signature verification failed. Checksums were generated for those artifacts but you MUST check if there’s an actual problem. Look for entries with the following comment: PGP verification failed PGP verification failed

Only 6 keys are concerned. This does not prevent the verification to work using metadata, though it’s better to check the situation in case of doubts (OK OTTB). You may use

Tip
gradlew build --refresh-keys

To recreate the keys

The verification-metadata.xml file contains 2 entries that can be set to true or false to check or ignore the 2 functionalities:

Important
<verify-metadata>true</verify-metadata>
<verify-signatures>true</verify-signatures>

Finally, you may refer to https://issues.apache.org/jira/browse/OFBIZ-12186 for more information.

13. Appendices

14. Apache OFBiz Plugins for Developer

The Apache OFBiz Project

14.1. Deployment

14.1.1. OFBiz Single Sign On using CAS and LDAP

Setup the Java Key Store

From the directory in which you want to create the keystore, run keytool with the following parameters.

  1. Generate the server certificate.

        $ keytool -genkey -alias tomcat -keyalg RSA -keypass changeit -storepass changeit -keystore keystore.jks

    When you press Enter, keytool prompts you to enter the server name, organizational unit, organization, locality, state, and country code.

    Note
    Note that you must enter the server name in response to keytool’s first prompt, in which it asks for first and last names.

    For testing purposes, this can be localhost.

  2. Export the generated server certificate in keystore.jks into the file server.cer.

        $ keytool -export -alias tomcat -storepass changeit -file server.cer -keystore keystore.jks
  3. To create the trust-store file cacerts.jks and add the server certificate to the trust-store, run keytool from the directory where you created the keystore and server certificate. Use the following parameters:

        $ keytool -import -v -trustcacerts -alias tomcat -file server.cer -keystore cacerts.jks -keypass changeit -storepass changeit
  4. Information on the certificate, such as that shown next, will display.

        $ keytool -import -v -trustcacerts -alias tomcat -file server.cer -keystore cacerts.jks -keypass changeit -storepass changeit

        Owner: CN=localhost, OU=Sun Micro, O=Docs, L=Santa Clara, ST=CA, C=US
        Issuer: CN=localhost, OU=Sun Micro, O=Docs, L=Santa Clara, ST=CA, C=US
        Serial number: 3e932169
        Valid from: Tue Apr 08
        Certificate fingerprints:
        MD5: 52:9F:49:68:ED:78:6F:39:87:F3:98:B3:6A:6B:0F:90
        SHA1: EE:2E:2A:A6:9E:03:9A:3A:1C:17:4A:28:5E:97:20:78:3F:
        Trust this certificate? [no]:
  5. Enter yes, and then press the Enter or Return key. The following information displays:

        Certificate was added to keystore
        [Saving cacerts.jks]
CAS Server
  1. Download CAS server from the CAS web site.

  2. Deploy cas-server-webapp-[version].war to Tomcat

  3. Set key store file to Tomcat

        keystoreFile="path/to/keystore.jks"
  4. Start Tomcat

OFBiz Certificate

Set trust store’s file to Java Virtual Machine (JVM) before start OFBiz.

    -Djavax.net.ssl.trustStore=path/to/cacerts.jks
LDAP Component

OFBiz uses the LDAP component in the plugins to check the security in a web application.

LDAP Properties

LDAP properties file is plugins/ldap/config/ldap.xml.
You can change a filter condition you want.

Attributes
  1. Attribute : LDAP attbitue for filter e.g. uid=%u

  2. AuthenType : LDAP authentication method e.g. simple

  3. AuthenticaionHandler : CAS handler class e.g. org.apache.ofbiz.ldap.cas.OFBizCasAuthenticationHandler

  4. AutoPartyId : Party’s id for user login e.g. admin

  5. AutoSecurityGroupId : Security group’s id for user login e.g. FULLADMIN

  6. BaseDN : The top level ofbiz LDAP directory tree e.g. dc=example,dc=com

  7. Filter : LDAP search filter e.g. (objectclass=*)

  8. Scope : LDAP search scope parameter e.g. sub,one, etc.

  9. URL : LDAP server’s url e.g. ldap://localhost:389

  10. UserOFBizLoginWhenLDAPFail : indicate that if LDAP fail then login with normal OFBiz’s user or not. (true/false)

CAS
  1. CasLoginUri : URI to CAS login e.g. /login

  2. CasLogoutUri : URI to CAS logout e.g. /logout

  3. CasUrl : CAS Server’s URL e.g. https://localhost:8443/cas

  4. CasValidateUri : URI to CAS validate e.g. /validate

  5. CasLdapHandler : LDAP hanlder class e.g. org.apache.ofbiz.ldap.openldap.OFBizLdapAuthenticationHandler

  6. CasTGTCookieName : CAS TGT’s cookie name e.g. CASTGC

OpenLDAP

The LDAP component need data from LDAP server (OpenLDAP). The server needs to install, configure and populate OpenLDAP: see at the OpenLDAP web site.

Web Application Security Mapping

Every web application you need to use LDAP (single sign on) feature, you need to change the event’s path of some the security request mappings to org.apache.ofbiz.ldap.LdapLoginWorker class.

checkLogin
    <request-map uri="checkLogin" edit="false">
        <description>Verify a user is logged in.</description>
        <security https="true" auth="false"/>
        <event type="java" path="org.apache.ofbiz.ldap.LdapLoginWorker" invoke="checkLogin"/>
        <response name="success" type="view" value="main"/>
        <response name="error" type="view" value="login"/>
    </request-map>
login
    <request-map uri="login">
        <security https="true" auth="false"/>
        <event type="java" path="org.apache.ofbiz.ldap.LdapLoginWorker" invoke="login"/>
        <response name="success" type="view" value="main"/>
        <response name="requirePasswordChange" type="view" value="requirePasswordChange"/>
        <response name="error" type="view" value="login"/>
    </request-map>
logout
    <request-map uri="logout">
            <security https="true" auth="true"/>
            <event type="java" path="org.apache.ofbiz.ldap.LdapLoginWorker" invoke="logout"/>
            <response name="success" type="request-redirect" value="main"/>
            <response name="error" type="view" value="main"/>
    </request-map>
